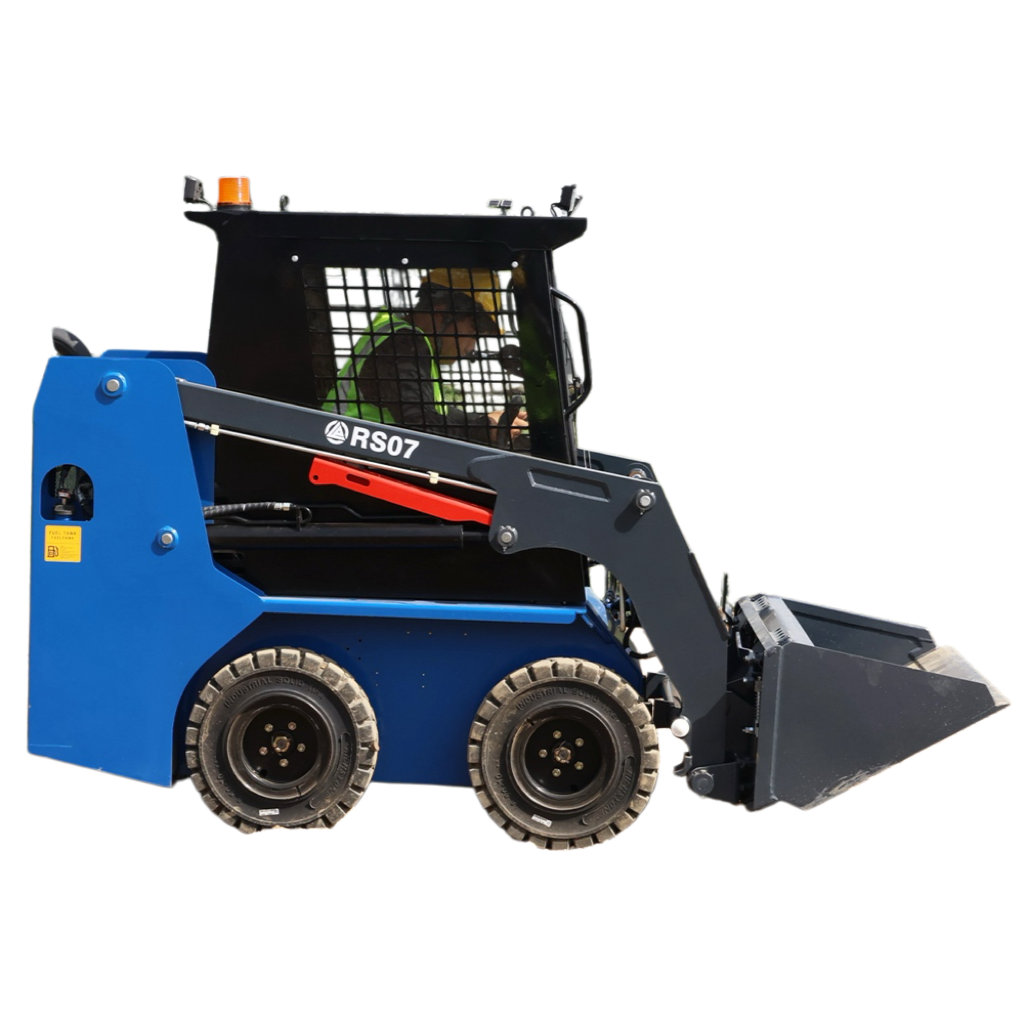

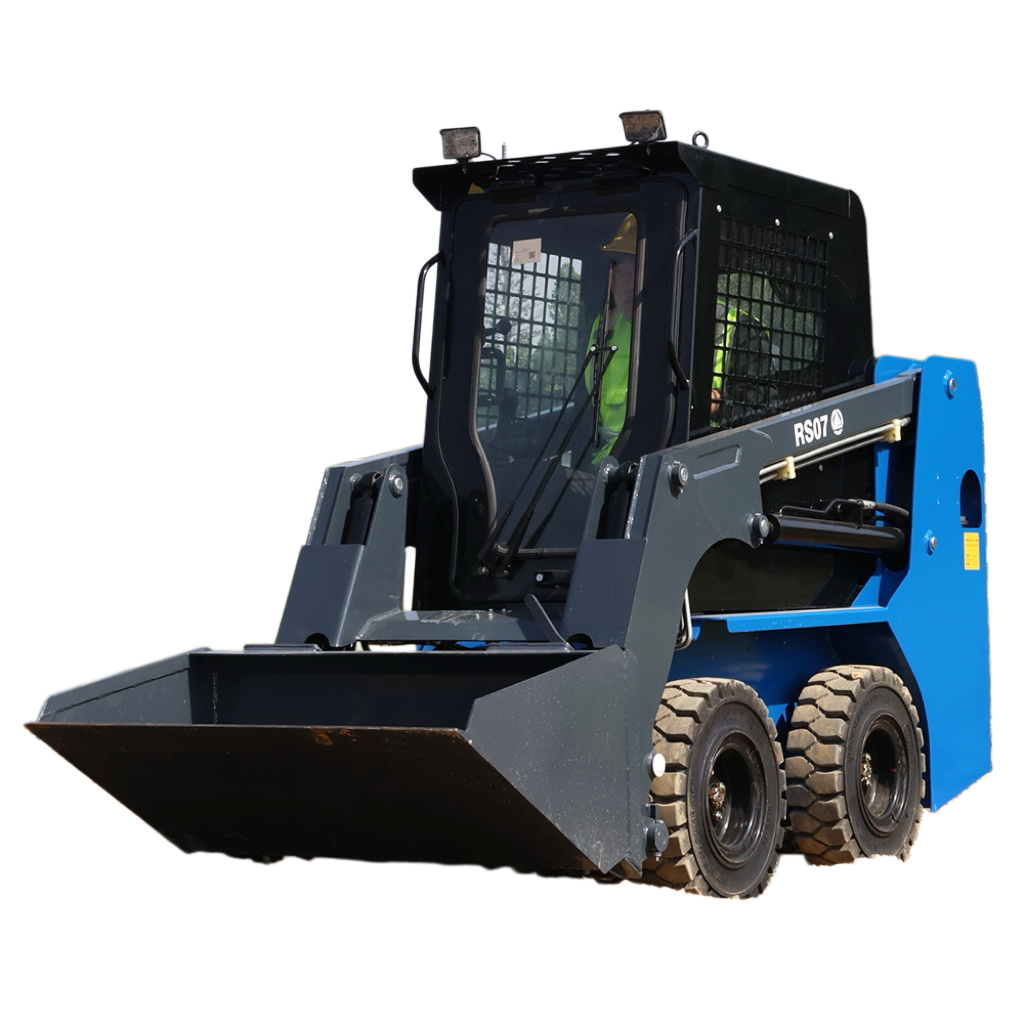

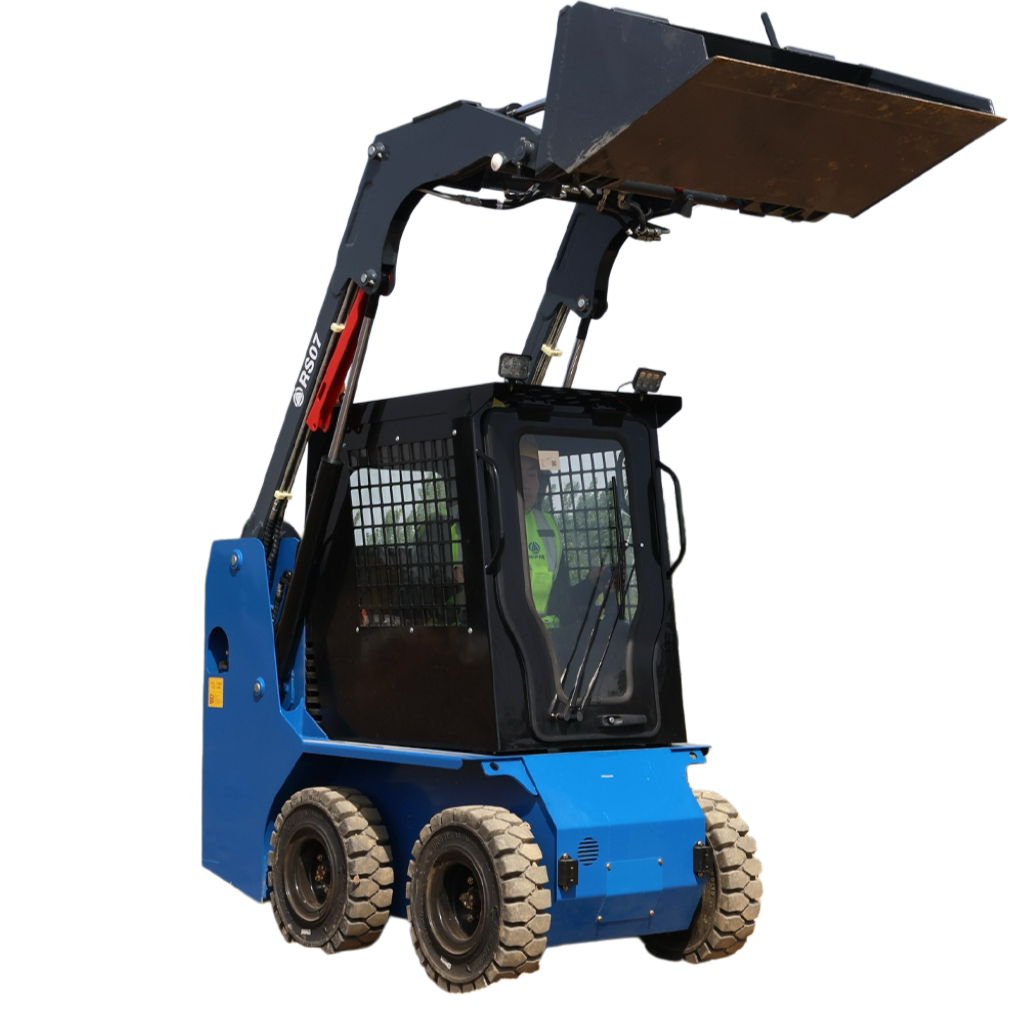

Skid-steer Loader RS07 |
||
|
Basic Parameters |
Operating Weight (kg) |
1230 |
|
Bucket Capacity (m³) |
0.16 |
|
|
Rated Load Capacity (kg) (Safe Load) |
300 |
|
|
Max. Load Capacity (kg) |
670 |
|
|
Travel Speed Low/High (km/h) |
0-8 |
|
|
Gradeability (%) |
30% |
|
|
Ground Pressure (kPa) |
95.87 |
|
|
Max. Dumping Height (mm) |
1725 |
|
|
Max. Loading Height (mm) |
2260 |
|
|
Max. Dumping Distance (mm) |
508 |
|
|
Min. Ground Clearance (mm) |
176 |
|
|
Configuration |
Cabin |
Yes |
|
Armrest |
Yes |
|
|
Quick Coupler |
Yes |
|
|
Hydraulic Quick Coupler |
– |
|
|
4-in-1 Bucket |
Optional |
|
|
Fork |
Optional |
|
|
Sweeper |
Optional |
|
|
Breaker |
Optional |
|
|
Counterweight |
– |
|
|
Tensioning Method |
– |
|
|
Air Conditioning |
– |
|
|
Hydraulic System |
Main Pump Type/Model |
Closed-loop pump V90C23HT1/RNB2S12KA1-LP01 |
|
Main Pump Brand |
Hengli |
|
|
Main Pump Max. Flow (L/min) |
48 |
|
|
Travel Rated Pressure (MPa) |
16 |
|
|
Gear Pump Model |
316 |
|
|
Gear Pump Brand |
Tianjin Xingzou |
|
|
Gear Pump Max. Flow |
48 |
|
|
Multi-way Valve |
Pilot-operated multi-way valve |
|
|
Working Rated Pressure (MPa) |
16 |
|
|
Travel Motor Type |
Hengli BMER-600 |
|
|
Travel Motor Brand |
Hengli |
|
|
Motor Displacement |
600 |
|
|
Engine |
Engine Brand |
Kubota |
|
Engine Model |
D1105 |
|
|
Max. Horsepower (ps) |
24.8 |
|
|
Max. Power (kW) |
18.2 |
|
|
Max. Speed (rpm) |
3000 |
|
|
Displacement (L) |
1.123 |
|
|
Number of Cylinders |
3 |
|
|
Cooling Method |
Water-cooled |
|
|
Engine Oil Capacity (L) |
4 |
|
|
Fuel Type |
Diesel |
|
|
Fuel Grade |
No. 0 / No. -10 |
|
|
Theoretical Fuel Consumption (L/h) |
1.3-1.5 |
|
|
Dimensions (Machine) |
Transport Length (with bucket) (mm) |
2655 |
|
Transport Length (without bucket) (mm) |
1985 |
|
|
Transport Width (mm) |
1000 |
|
|
Transport Height (mm) |
1810 |
|
|
Bucket Width (mm) |
1000 |
|
|
Tanks |
Fuel Tank (L) |
32 |
|
Hydraulic Oil Tank (L) |
32 |
|
|
Wheels |
Standard: Tire size |
570×160 |
|
Shipping Reference |
Wooden Case Size (mm) |
2900×1100×1900 |
|
Quantity per 40ft High Cube Container |
10 |
|
|
Quantity per 20ft Container |
4 |
|
