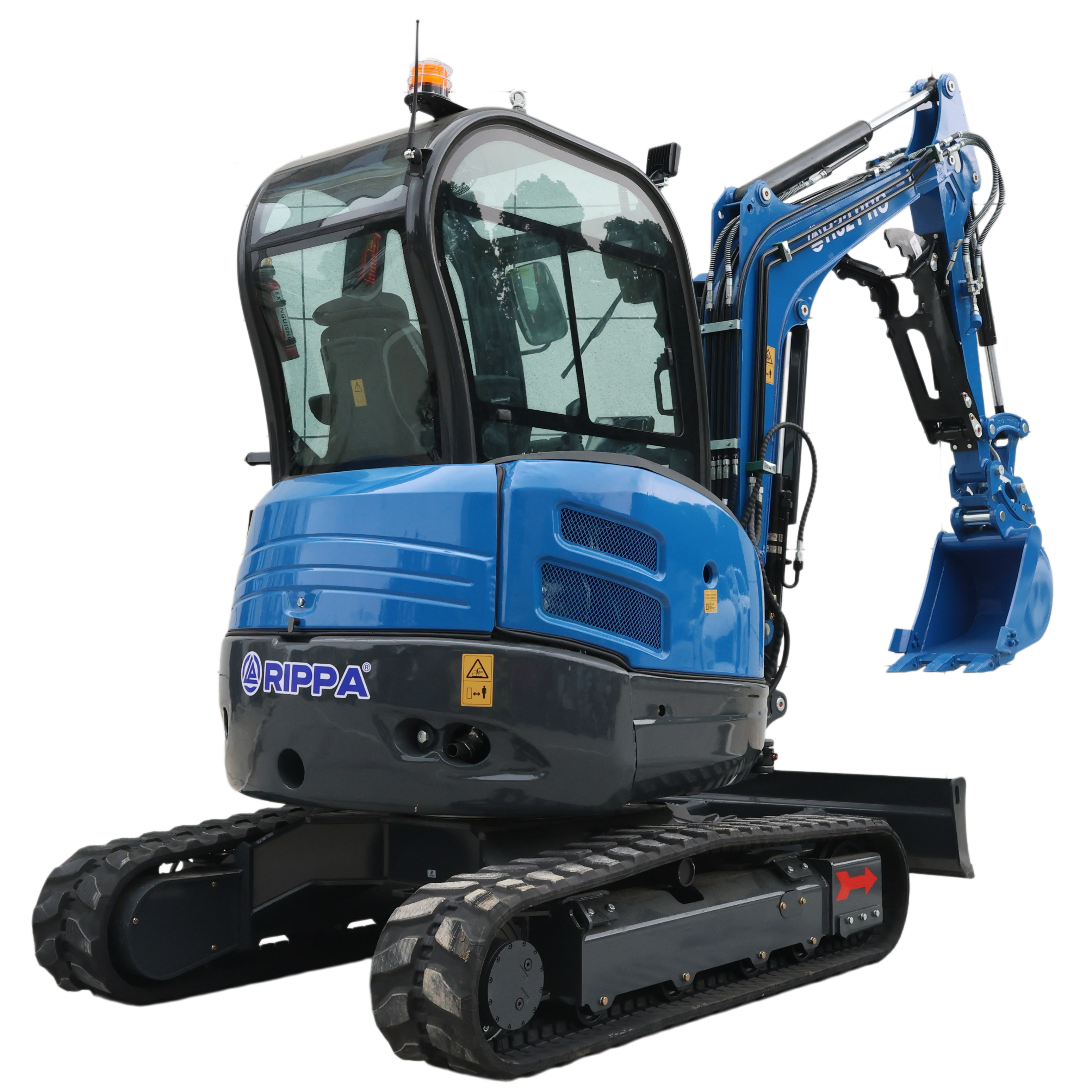

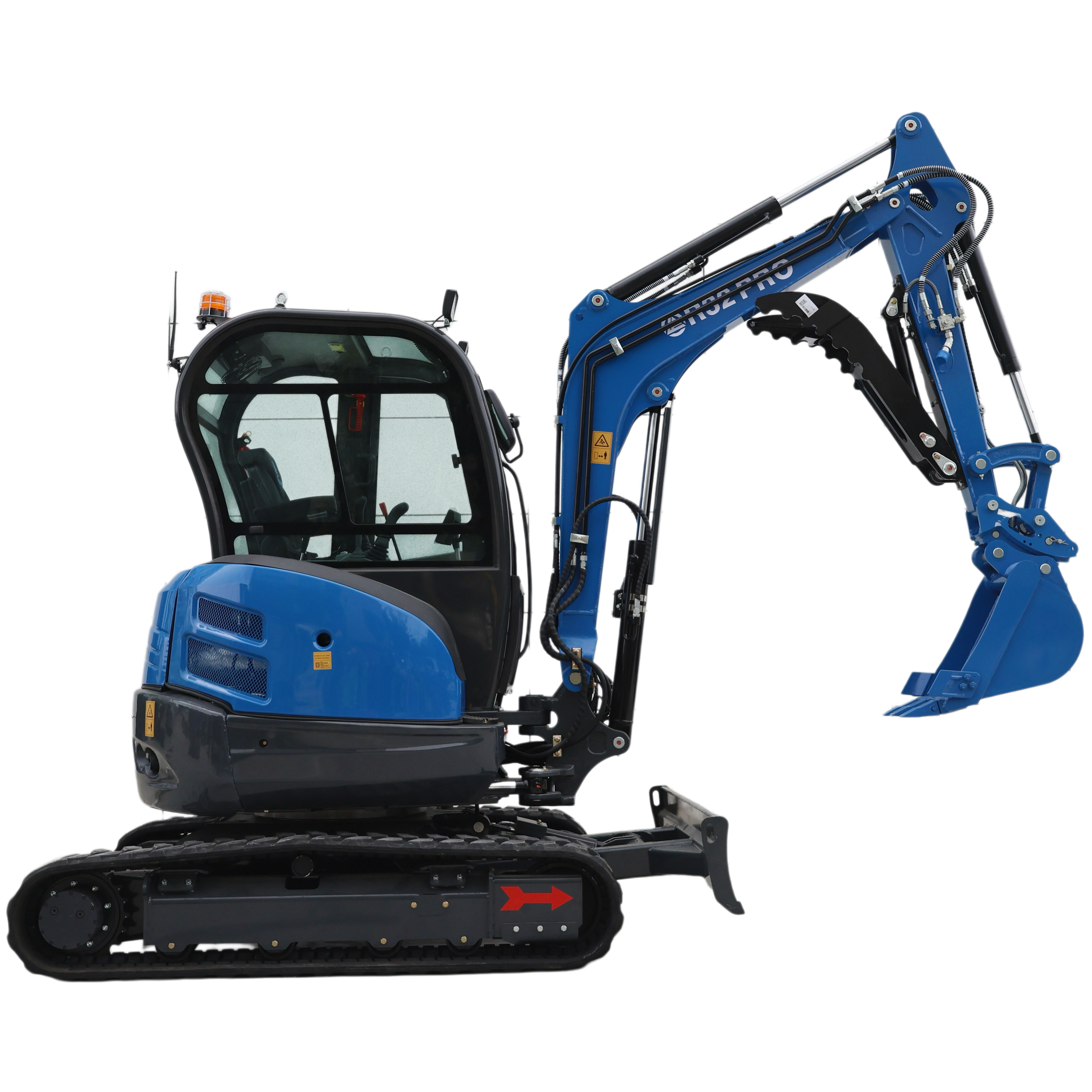

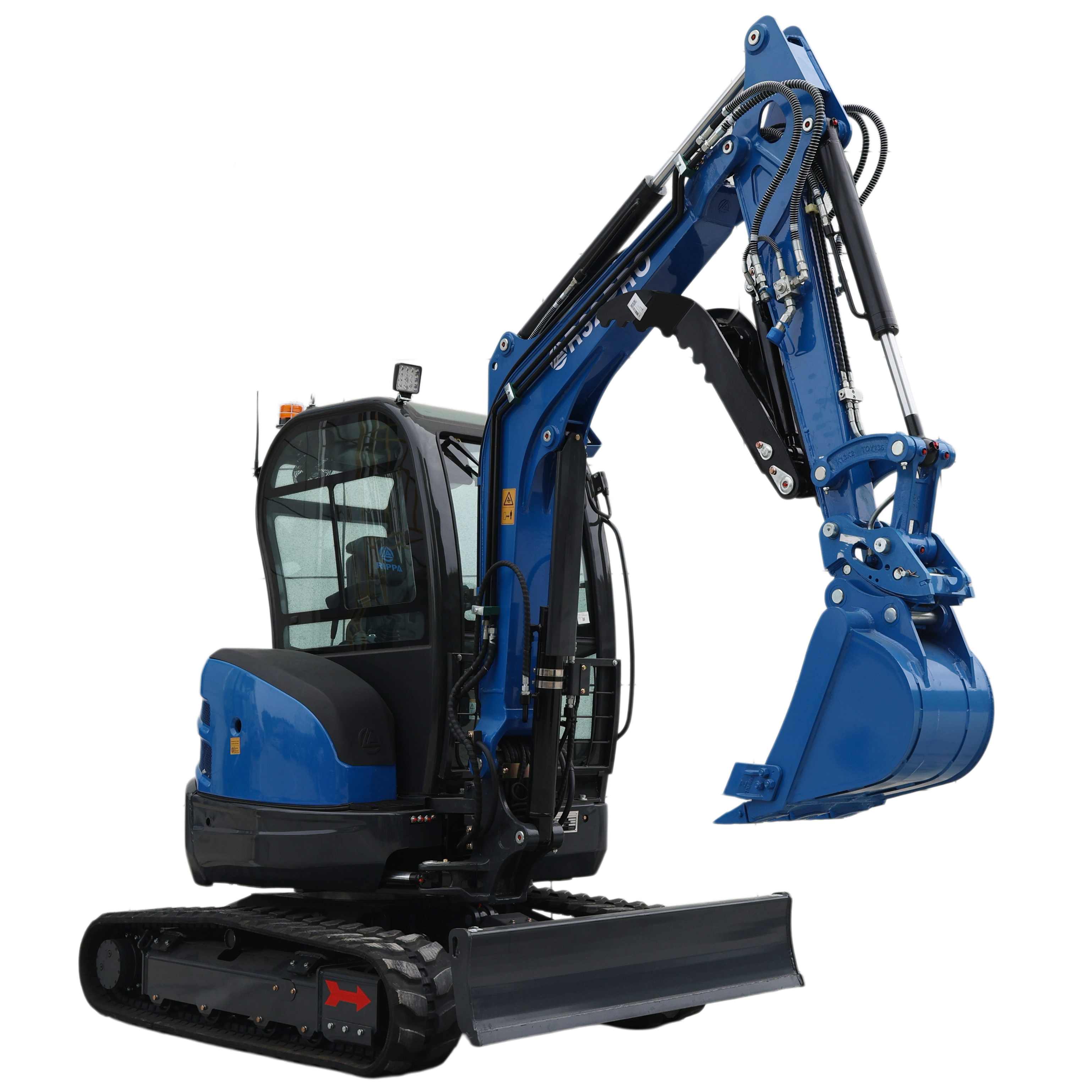

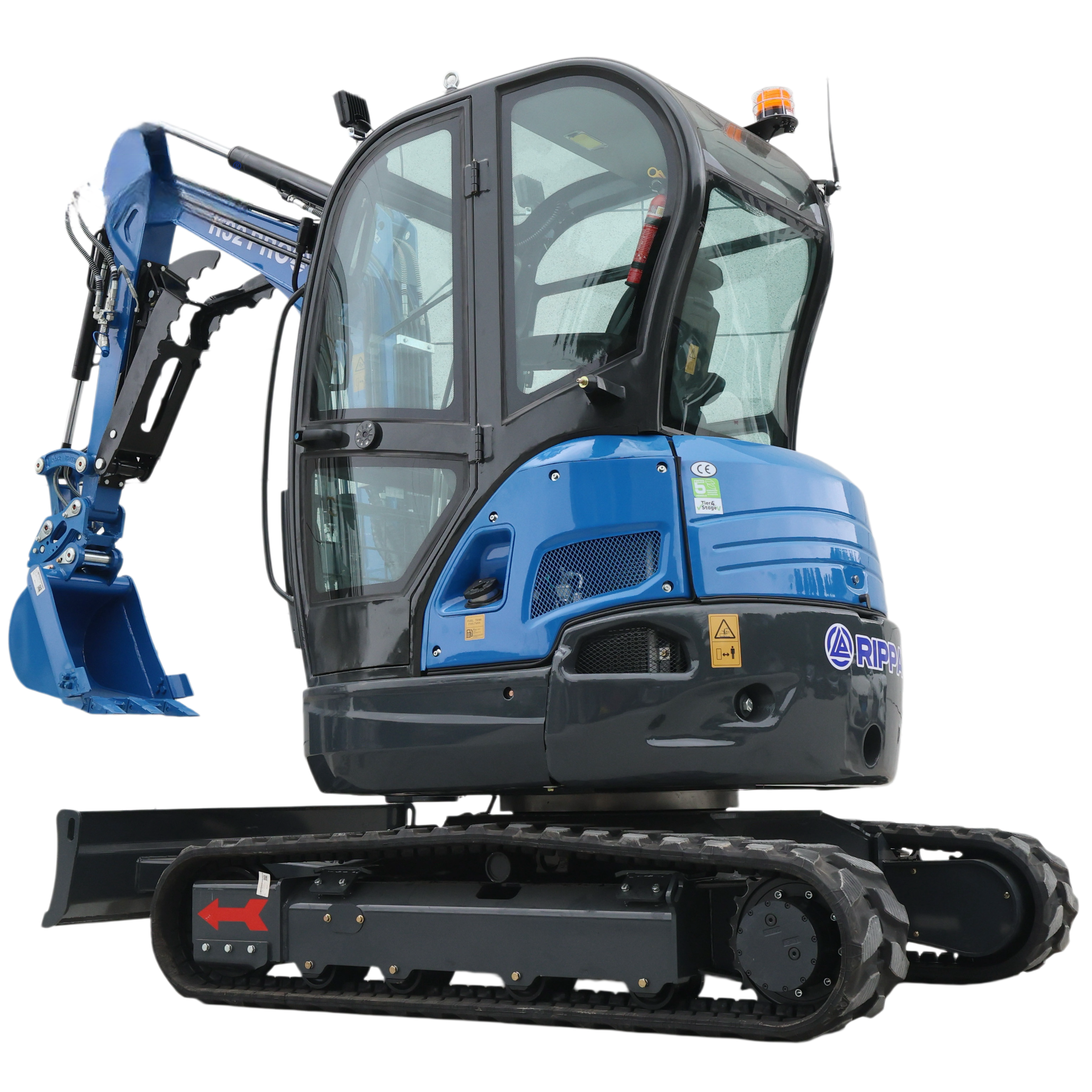

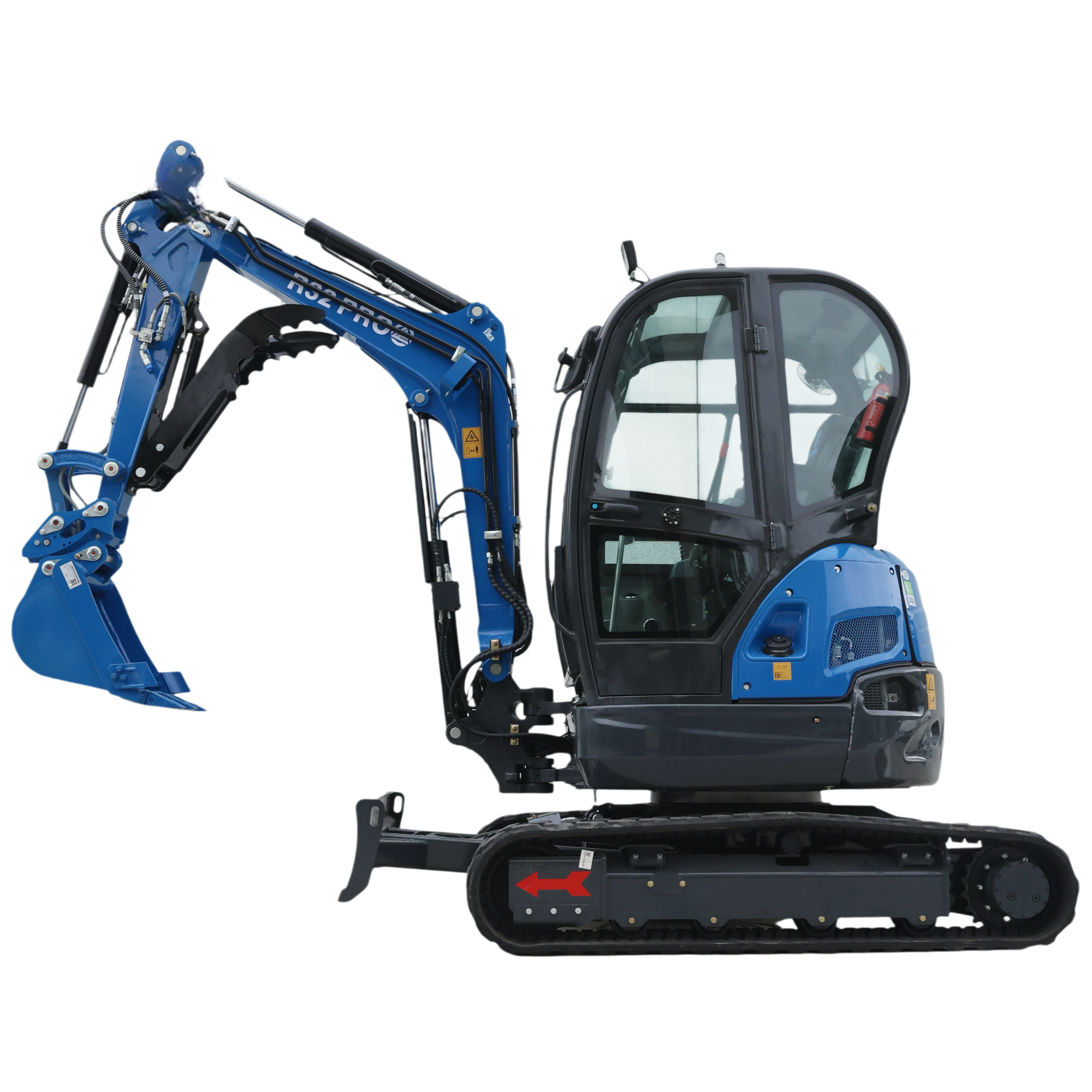

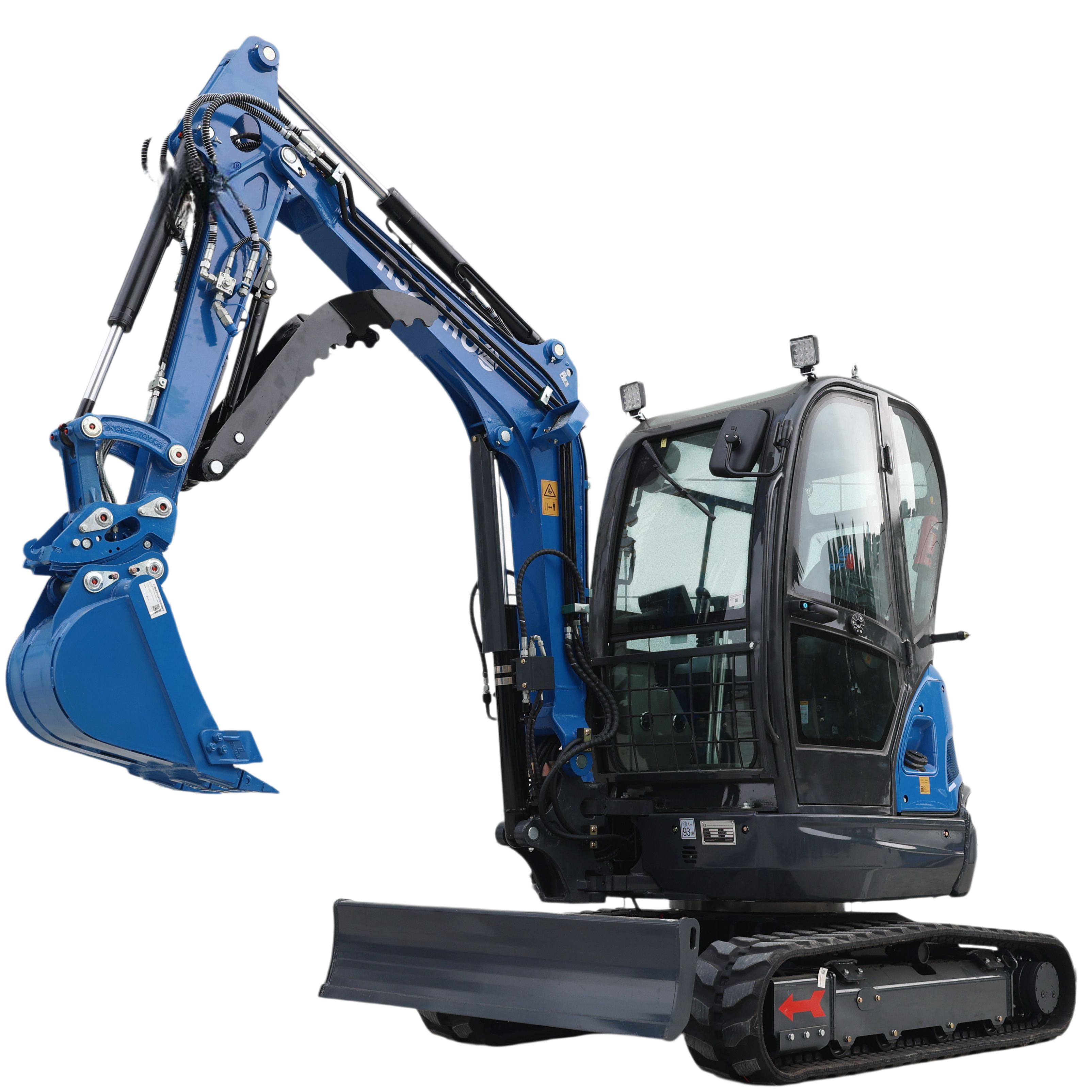

Excavator R32 |
||
|
Basic Parameters |
Operating Weight (kg) (actual weight + 75kg operator) |
3219 |
|
Bucket Capacity (m³) |
0.08 |
|
|
Travel Speed – Low/High (km/h) |
0-1.8 / 0-2.8 |
|
|
Gradeability (%) |
30% |
|
|
Ground Pressure (kPa) |
36 |
|
|
Max. Digging Force (kN) |
27 |
|
|
Max. Digging Radius (mm) |
4831 |
|
|
Max. Digging Depth (mm) |
2827 |
|
|
Max. Digging Height (mm) |
4563 |
|
|
Max. Dumping Height (mm) |
3181 |
|
|
Max. Swing Angle (°) |
110 |
|
|
Track Expansion Range (mm) |
– |
|
|
Configuration |
Cabin |
Yes |
|
Armrest |
– |
|
|
Quick Coupler |
– |
|
|
Hydraulic Quick Coupler |
Yes |
|
|
Ripper |
Optional |
|
|
Grapple |
Optional |
|
|
Rake |
Optional |
|
|
Hydraulic Breaker |
Optional |
|
|
Counterweight |
Yes |
|
|
Tensioning Method |
Grease cylinder |
|
|
Air Conditioning |
Yes |
|
|
Hydraulic System |
Main Pump Type/Model |
|
|
Main Pump Brand |
Taifeng |
|
|
Main Pump Max. Flow (L/min) |
99 |
|
|
Multi-way Valve |
Load-sensing 9-spool hydraulic control |
|
|
Multi-way Valve Brand |
Taifeng |
|
|
Rated Pressure (MPa) |
18 |
|
|
Max. Pressure (MPa) |
20 |
|
|
Travel Motor Type |
LTM03AX |
|
|
Travel Motor Brand |
Likchuan |
|
|
Motor Displacement |
15.4 / 23.2 |
|
|
Swing Motor Type |
Likchuan |
|
|
Displacement |
18.1 |
|
|
Engine |
Engine Brand |
Kubota |
|
Engine Model |
V1505 |
|
|
Max. Horsepower (ps) |
25 |
|
|
Max. Power (kW) |
18.2 |
|
|
Max. Speed (rpm) |
2300 |
|
|
Displacement (L) |
1.5 |
|
|
Number of Cylinders |
4 |
|
|
Cooling Method |
Water-cooled |
|
|
Engine Oil Capacity (L) |
5 |
|
|
Fuel Type |
Diesel |
|
|
Fuel Grade |
No. 0 / No. -10 |
|
|
Theoretical Fuel Consumption (L/h) |
1.3-1.5 |
|
|
Dimensions (Machine) |
Transport Length (mm) |
2921 |
|
Transport Width (mm) |
1550 |
|
|
Transport Height (mm) |
2369 |
|
|
Ground Clearance at Counterweight (mm) |
522 |
|
|
Bucket Width (mm) |
400 |
|
|
Boom Length (mm) |
2220 |
|
|
Arm Length (mm) |
1620 |
|
|
Dozer Blade Width (mm) |
1550 |
|
|
Tanks |
Fuel Tank (L) |
45 |
|
Hydraulic Oil Tank (L) |
40 |
|
|
Track |
Optional: Rubber (width × pitch × links) |
300×52.5×84 |
|
Optional: Steel (width × pitch × links) |
300×101.6×43 |
|
|
Rubber Pads (pieces) |
86 |
|
|
Shipping Reference |
Wooden Case Size (cm) |
470×180×240 |
|
Wooden Case Size after Removing Cabin (cm) |
470×180×240 |
|
|
Wooden Case Size for Cabin (cm) |
130×103×180 |
|
|
Quantity per 40ft High Cube Container (fully assembled) |
5 |
|
|
Quantity per 40ft High Cube Container (knocked down) |
/ |
|
