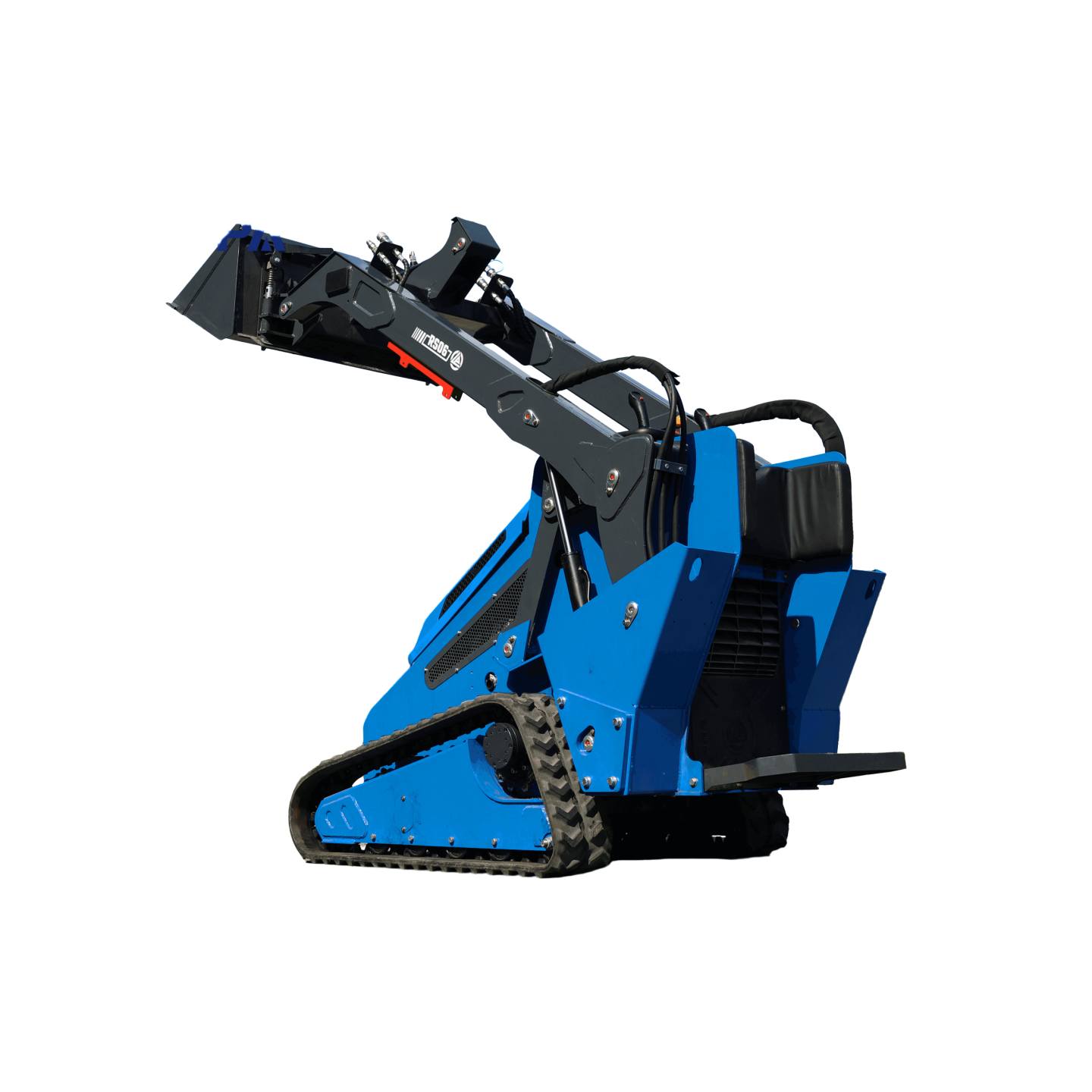

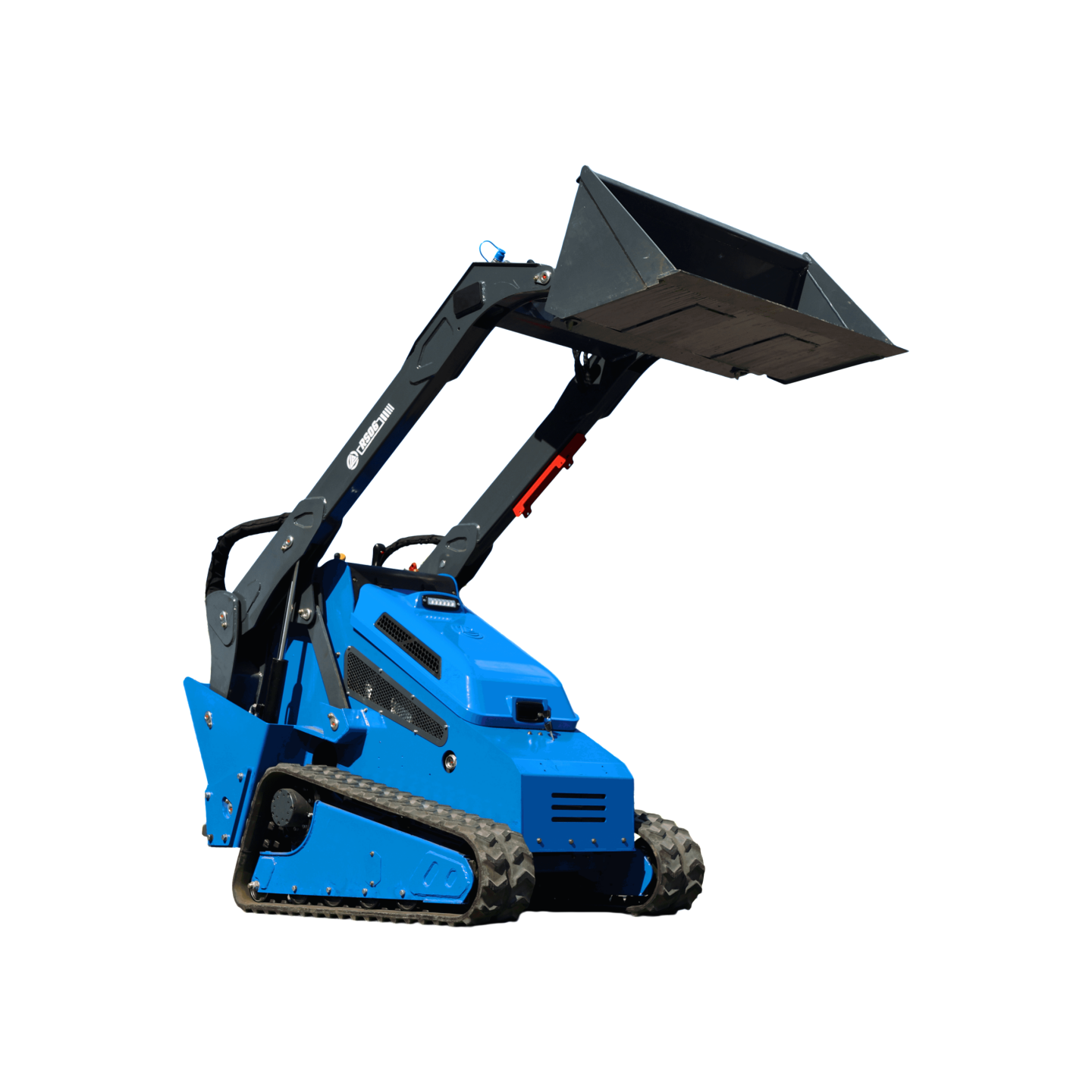

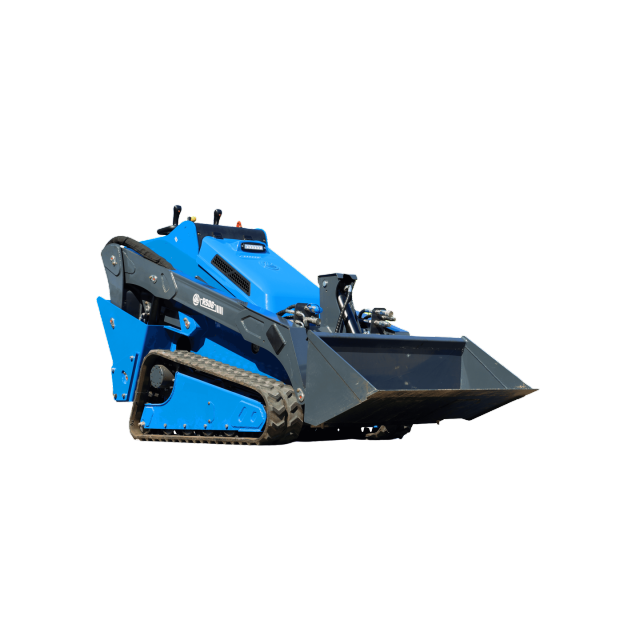

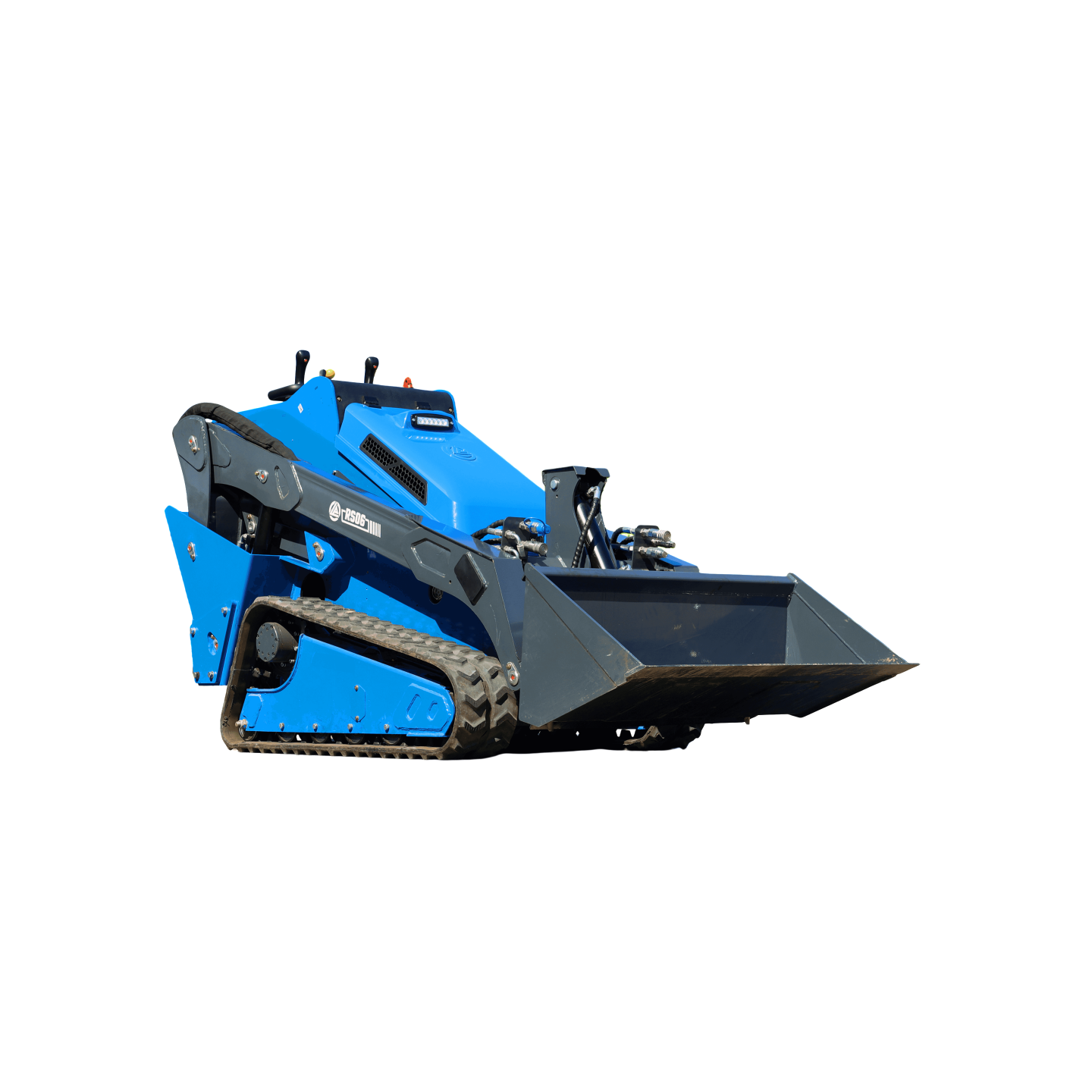

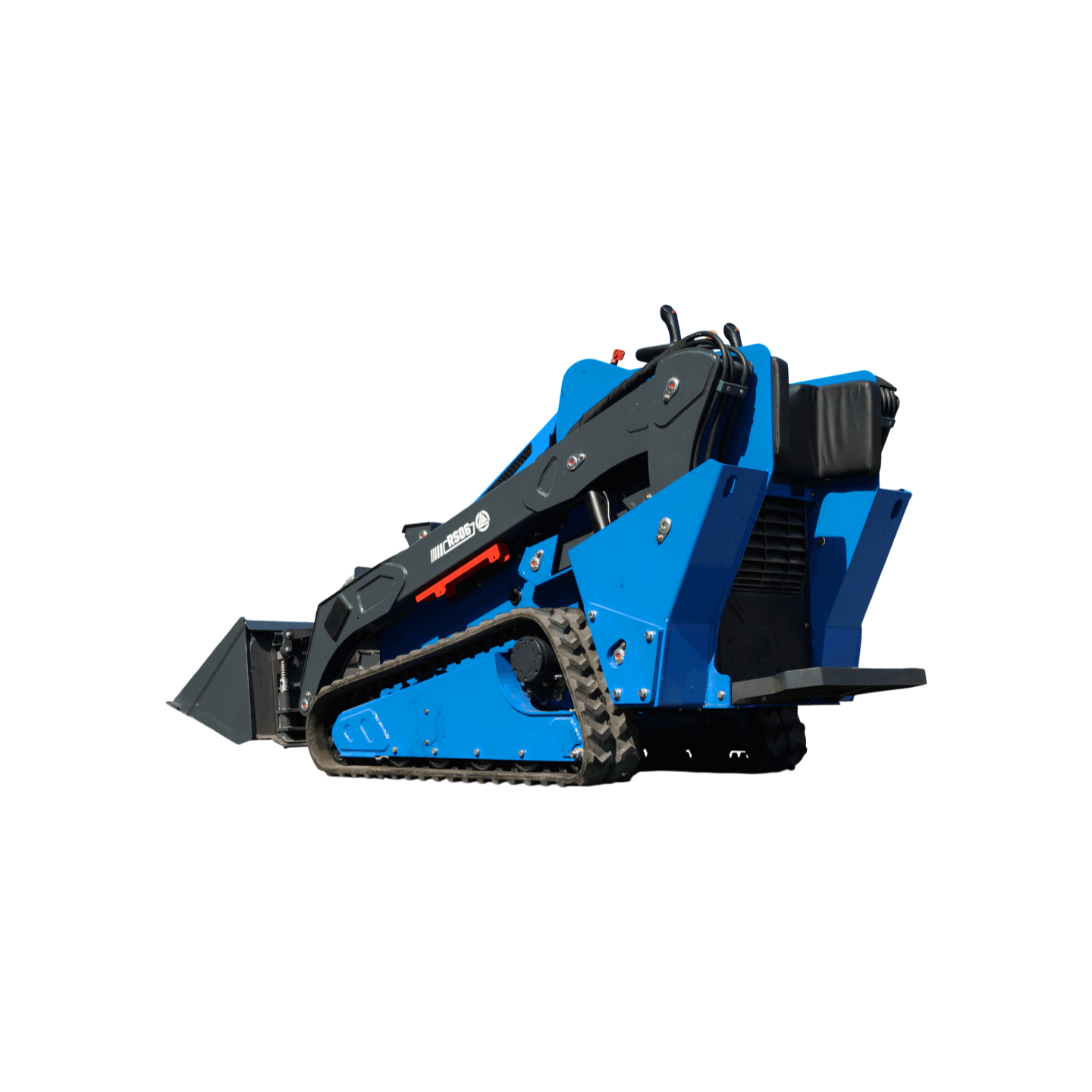

RS06 Skid-steer Loader |
||
|
Basic Parameters |
Operating Weight (kg) |
1475 |
|
Bucket Capacity (m³) |
0.16 |
|
|
Rated Load Capacity (kg) (Safe Load) |
300 |
|
|
Max. Load Capacity (kg) |
600 |
|
|
Travel Speed – Low/High (km/h) |
0-3 / 0-6.5 |
|
|
Gradeability (%) |
28% |
|
|
Ground Pressure (kPa) |
32.5 |
|
|
Max. Dumping Height (mm) |
1550 |
|
|
Max. Loading Height (mm) |
2530 |
|
|
Max. Dumping Distance (mm) |
645 |
|
|
Min. Ground Clearance (mm) |
163 |
|
|
Configuration |
Cabin |
– |
|
Armrest |
Yes |
|
|
Quick Coupler |
Yes |
|
|
Hydraulic Quick Coupler |
– |
|
|
4-in-1 Bucket |
Optional |
|
|
Fork |
Optional |
|
|
Sweeper |
Optional |
|
|
Breaker |
Optional |
|
|
Counterweight |
Yes |
|
|
Tensioning Method |
Hydraulic tensioning |
|
|
Air Conditioning |
– |
|
|
Hydraulic System |
Main Pump Type/Model |
Piston pump HP3VO45LA7DS_01SR-_VS1C12N00 |
|
Main Pump Brand |
Haiteke |
|
|
Main Pump Max. Flow (L/min) |
112.5 |
|
|
Multi-way Valve |
Load-sensing multi-way valve |
|
|
Main Valve Brand |
Haiteke |
|
|
Rated Pressure (MPa) |
22.5 |
|
|
Travel Pressure (MPa) |
22.5 |
|
|
Travel Motor Type |
Two-speed travel motor |
|
|
Travel Motor Brand |
Paiyi |
|
|
Motor Displacement |
390 |
|
|
Engine |
Engine Brand |
Kubota |
|
Engine Model |
D1105 |
|
|
Max. Horsepower (ps) |
25 |
|
|
Max. Power (kW) |
18.2 |
|
|
Max. Speed (rpm) |
3000 |
|
|
Displacement (L) |
1.123 |
|
|
Number of Cylinders |
3 |
|
|
Cooling Method |
Water-cooled |
|
|
Engine Oil Capacity (L) |
4 |
|
|
Fuel Type |
Diesel |
|
|
Fuel Grade |
No. 0 / No. -10 |
|
|
Theoretical Fuel Consumption (L/h) |
1.3-1.5 |
|
|
Dimensions (Machine) |
Transport Length (with bucket) (mm) |
2710 |
|
Transport Length (without bucket) (mm) |
2220 |
|
|
Transport Width (mm) |
1150 |
|
|
Transport Height (mm) |
1522 |
|
|
Bucket Width (mm) |
1150 |
|
|
Tanks |
Fuel Tank (L) |
20 |
|
Hydraulic Oil Tank (L) |
28 |
|
|
Track |
Standard: Rubber (width × pitch × links) |
230×72×45 |
|
Shipping Reference |
Wooden Case Size (mm) |
3000×1250×1650 |
|
Quantity per 40ft High Cube Container |
8 |
|
|
Quantity per 20ft Container |
4 |
|
