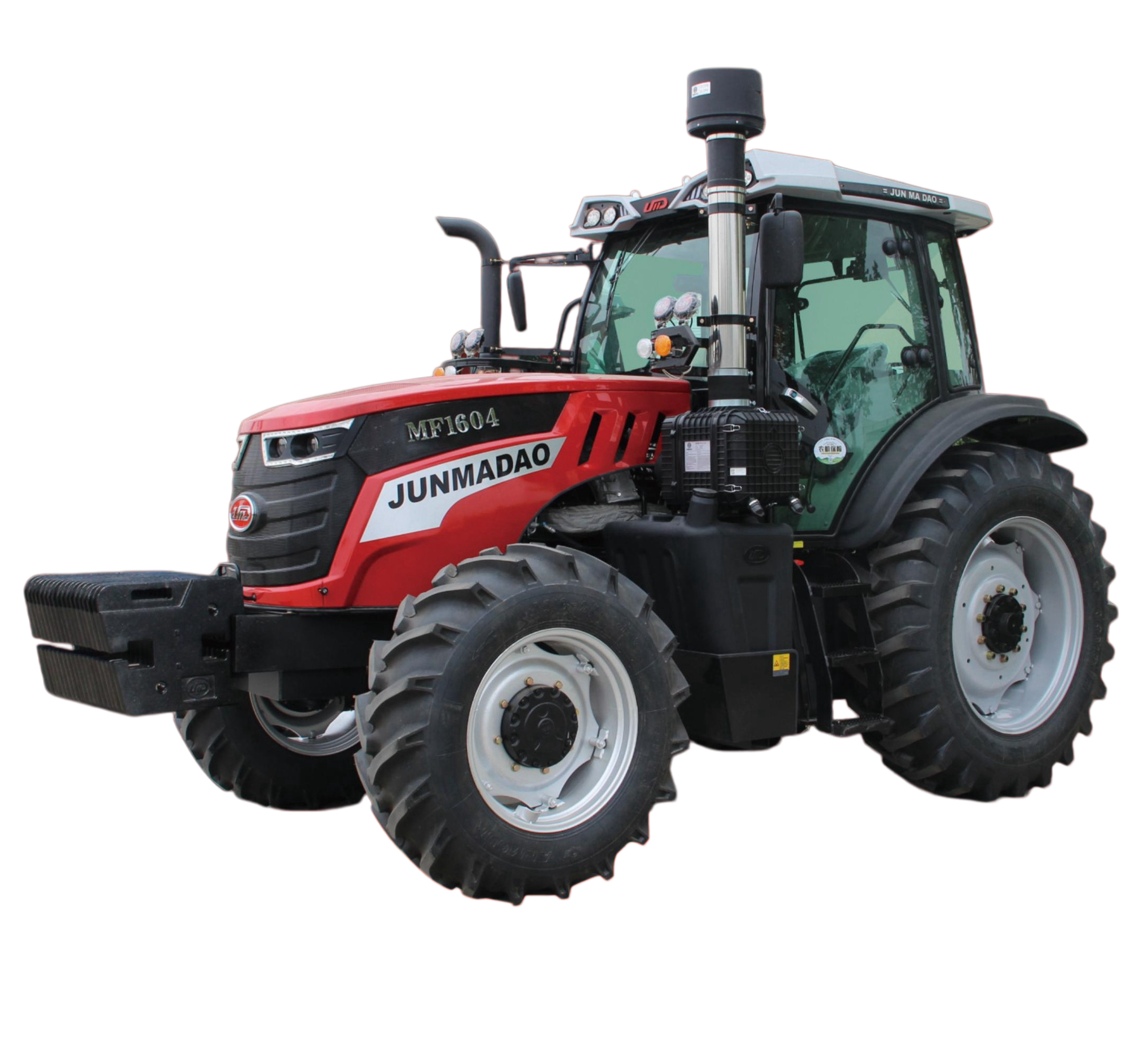

MF series tractor |
|||
|
Tractor model |
MF1404 |
MF1604 |
MF1804 |
|
Engine brand |
YUCHAI |
YUCHAI |
YUCHAI |
|
Engine model |
YC6J160L-T21 |
YC6J185L-T20 |
YC6A200L-T21 |
|
Emission standard |
Stage II |
Stage II |
Stage II |
|
Engine nominal power kw |
103 |
117.6 |
132.4 |
|
Nominal speed r/min |
2200 |
2200 |
2200 |
|
Overall dimensions(L×W×H) mm |
5320×2300×3150 |
5320×2300×3150 |
5320×2300×3150 |
|
Wheelbase mm |
2390 |
2390 |
2390 |
|
Track width mm |
1750,1850,1950,2050 |
1600-2100 |
1795,1895,1995,2095,2195 |
|
Minimum mass kg |
5250 |
5380 |
5450 |
|
Counterweight(front/rear) kg |
680/600 |
680/600 |
680/600 |
|
Tire size(front) |
14.9-28 |
14.9-28 |
14.9-28 |
|
Tire size(rear) |
18.4-38 |
18.4-38 |
18.4-38 |
|
Gear position(forward/reverse) |
16+8 |
16+8 |
16+8 |
|
Clutch |
Double-acting dry clutch |
Double-acting dry clutch |
Double-acting dry clutch |
|
Steering system |
Full hydraulic steering |
Full hydraulic steering |
Full hydraulic steering |
|
Number of hydraulic output groups |
3 or 4 |
3 or 4 |
3 or 4 |
|
Power output shaft speed r/min |
540/1000 |
540/1000 |
540/1000 |
