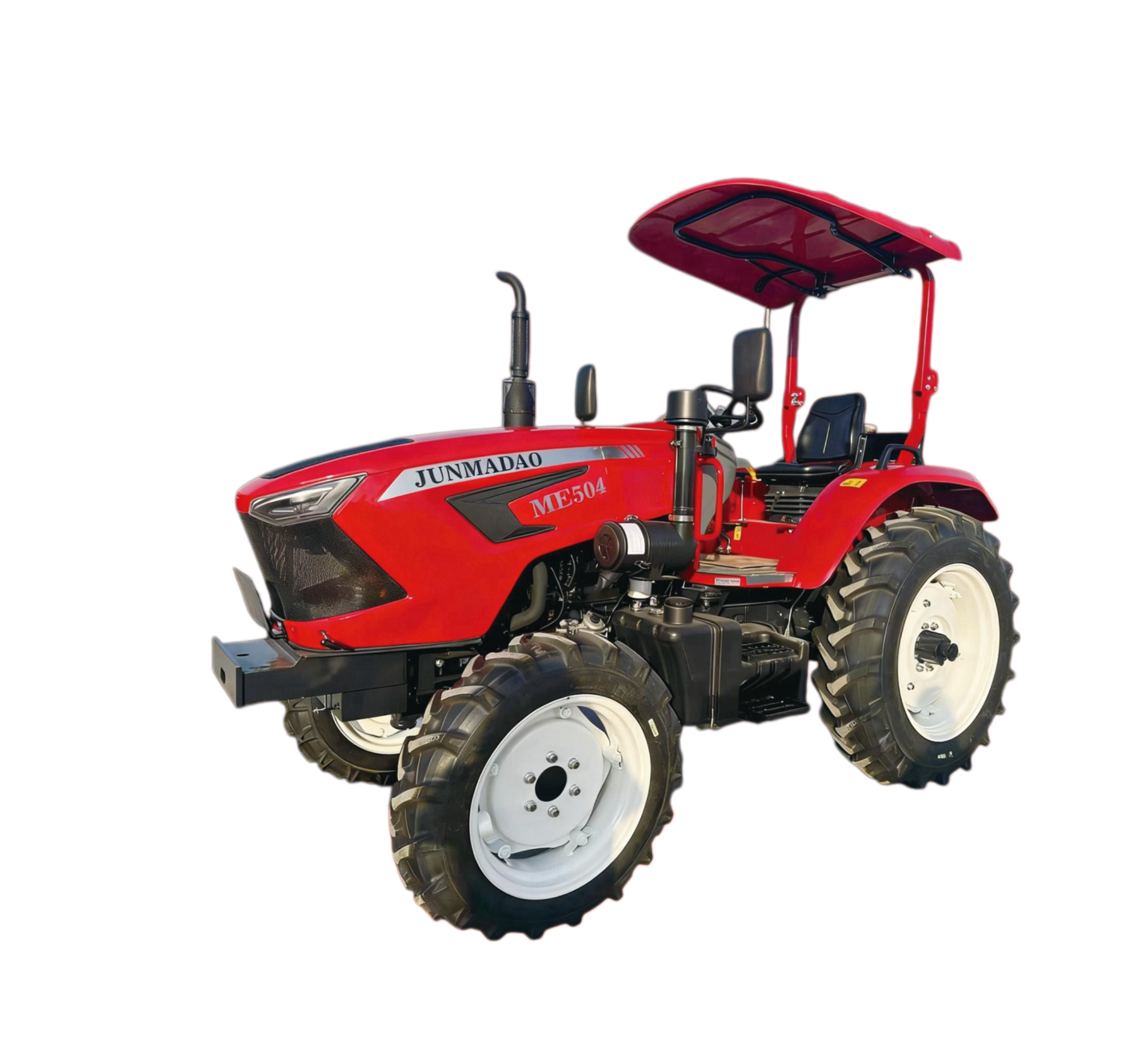

| ME504-A tractor, Small tractor with 36.8KW | ||
| Tractor model |
ME504-A |
ME504 |
|
Engine brand |
YANGDONG/LAIDONG |
YANGDONG/QUANCHAI |
|
Emission standard |
Stage II |
- |
|
Engine nominal power kw |
36.8 |
- |
|
Nominal speed r/min |
2200 |
- |
|
Overall dimensions(L×W×H) mm |
3340×1450×2050 |
3840×1620×2550 |
|
Wheelbase mm |
1870 |
1950 |
|
Track width mm |
960-1300/1510 |
2040 |
|
Counterweight(front/rear) kg |
44/60 |
150/60 |
|
Tire size(front) |
7.5-20 |
8.3-20 |
|
Tire size(rear) |
12.4-28 |
12.4-28 |
|
Gear position(forward/reverse) |
8+2/8+8 |
8+8 synchronizer |
|
Clutch |
Double-acting dry clutch |
Double-acting dry clutch |
|
Steering system |
Full hydraulic steering |
Full hydraulic steering |
|
Power output shaft speed r/min |
540/1000 |
540/1000 |
