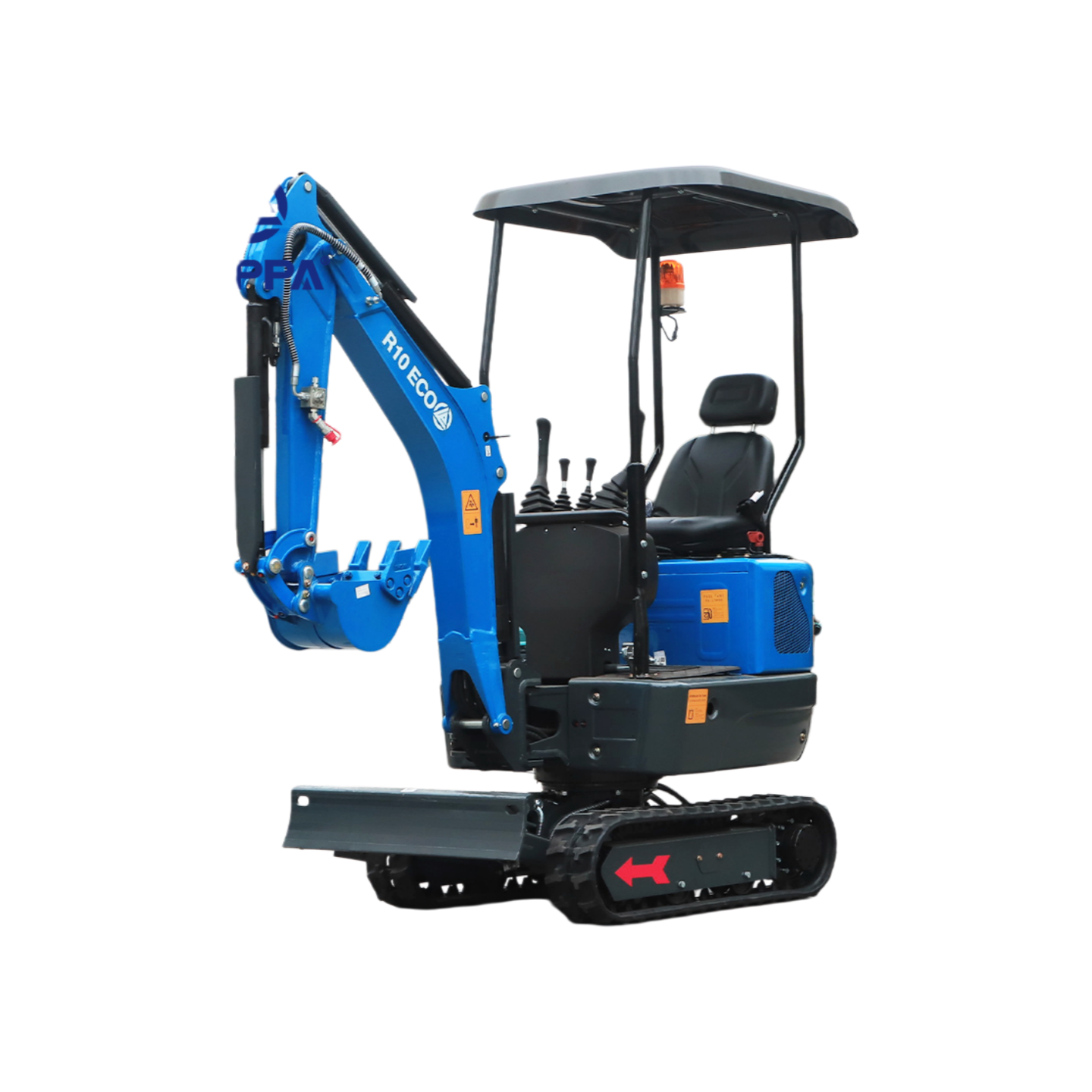

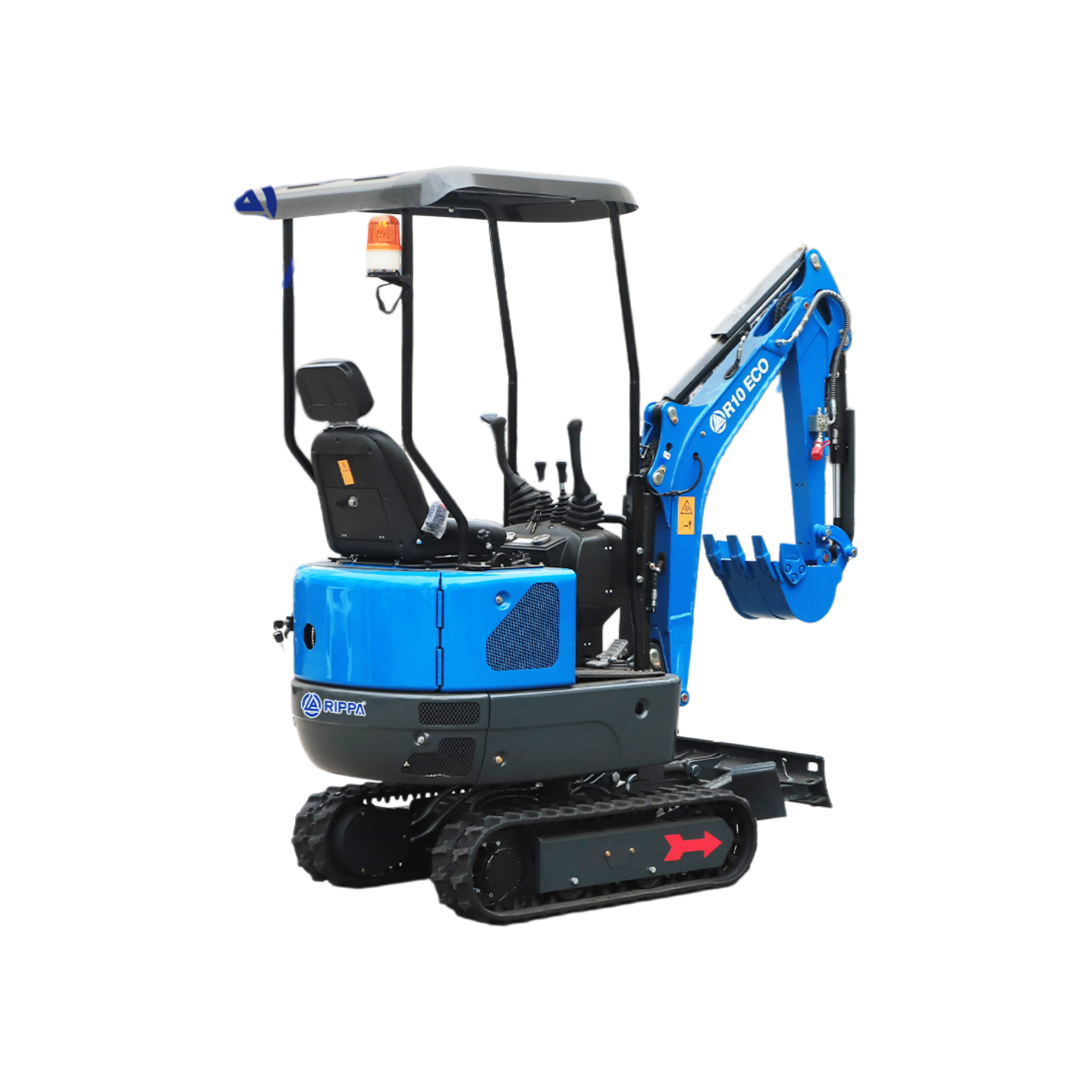

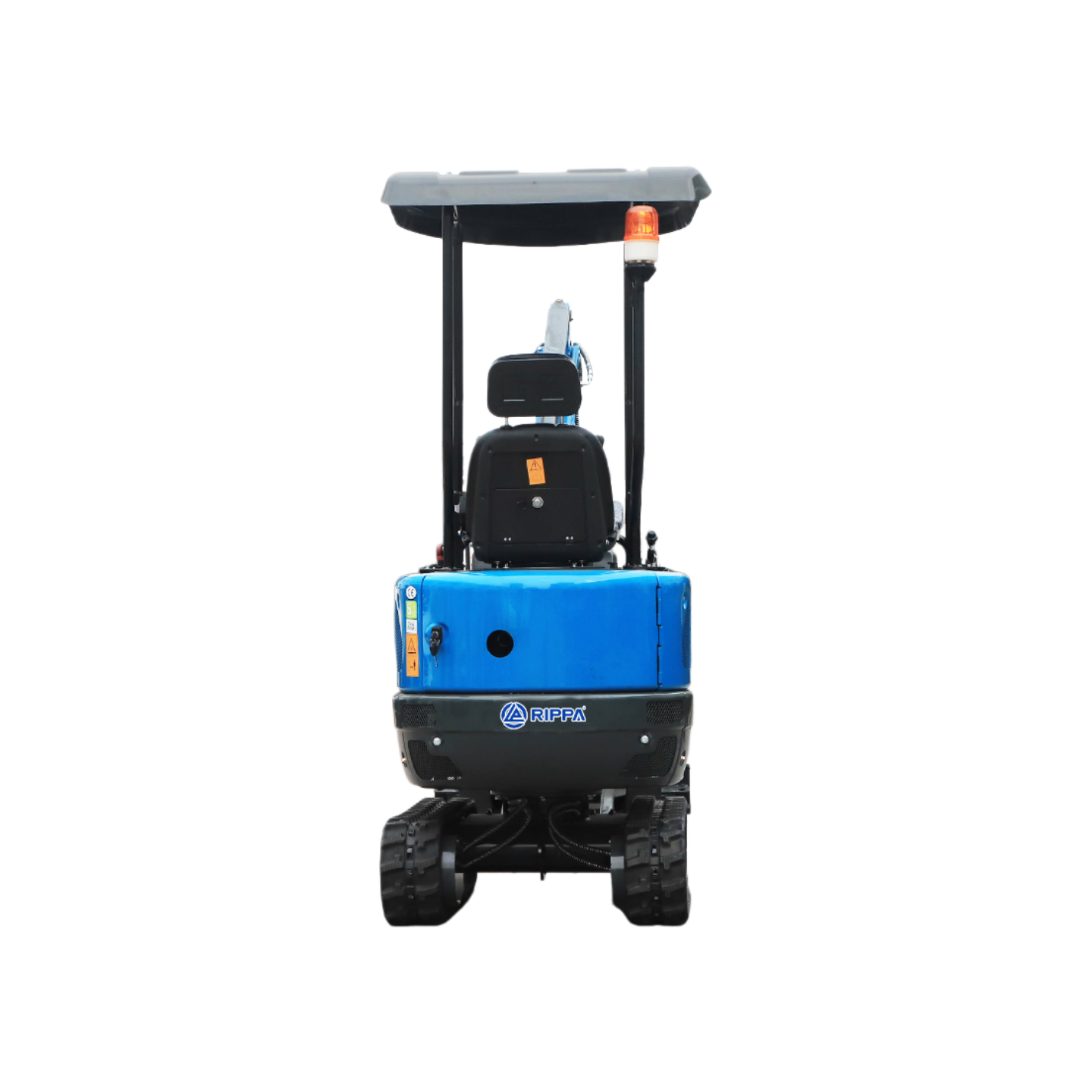

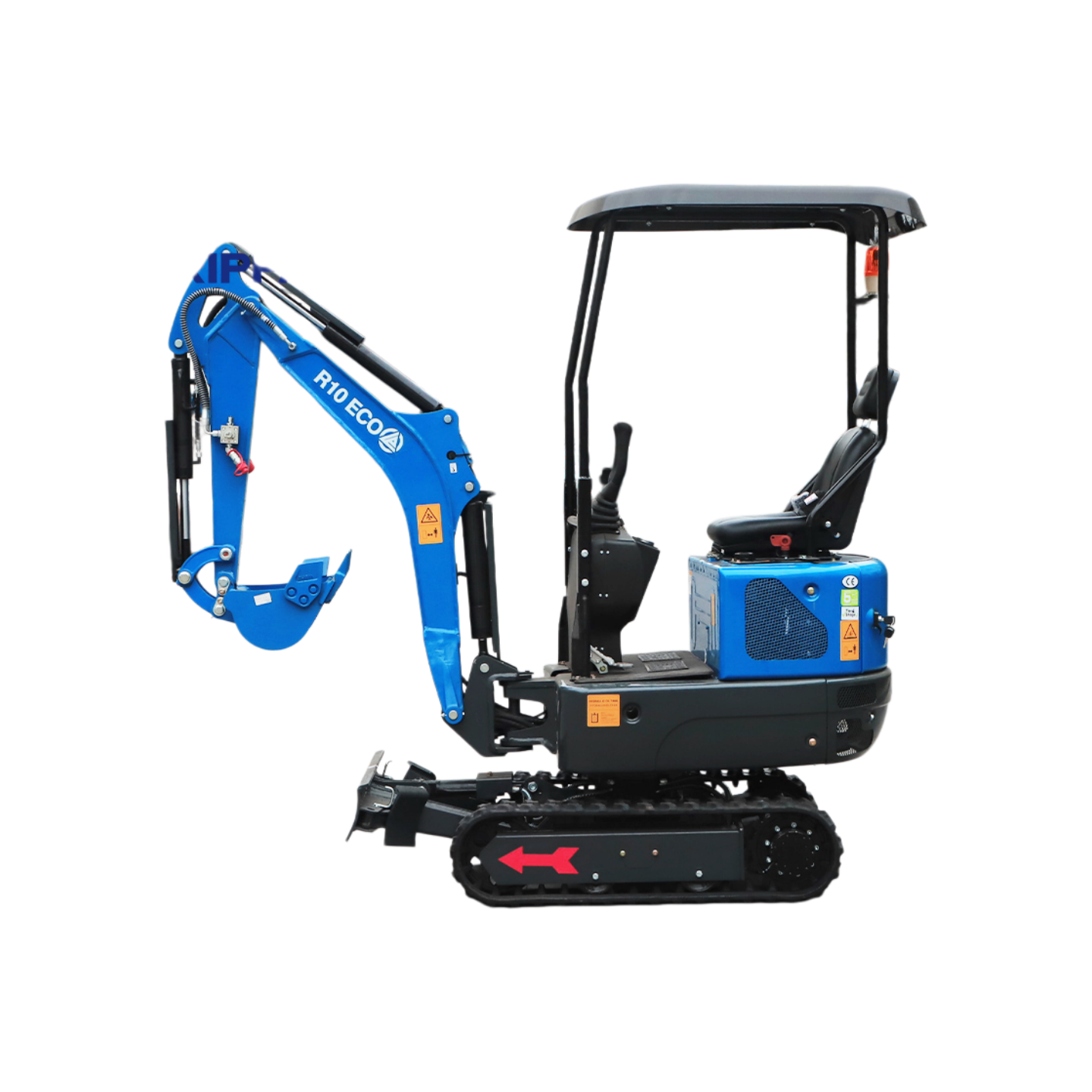

R10 Excavator |
||
|
Basic Performance Parameters |
Operating weight (kg) (actual weight + 75 kg person) |
1115 |
|
Bucket capacity (m³) |
0.014 |
|
|
Travel speed – low/high (km/h) |
0-1.5 |
|
|
Gradeability (%) |
30% |
|
|
Ground pressure (kPa) |
25.53 |
|
|
Max. digging force (kN) |
9.2 |
|
|
Max. digging radius (mm) |
3233 |
|
|
Max. digging depth (mm) |
1833 |
|
|
Max. digging height (mm) |
3021 |
|
|
Max. dumping height (mm) |
2247 |
|
|
Max. swing angle (°) |
121 |
|
|
Track expansion range (mm) |
900-1200 |
|
|
Configuration |
Cab |
Optional |
|
Armrest |
Optional |
|
|
Quick coupler |
Optional |
|
|
Hydraulic quick coupler |
-- |
|
|
Rake |
Optional |
|
|
Grapple |
Optional |
|
|
Ripper |
Optional |
|
|
Hydraulic breaker |
Optional |
|
|
Counterweight |
-- |
|
|
Tensioning method |
Mechanical |
|
|
Air conditioning |
Heating only |
|
|
Hydraulic System |
Main pump type / model |
6 ml/r |
|
Main pump brand |
Tianjin Travel / Shengjie |
|
|
Main pump max. flow (L/min) |
18 L/min |
|
|
Multi-control valve |
2+2+5 spools |
|
|
Multi-control valve brand |
Tengfei |
|
|
Rated set pressure (MPa) |
16 MPa |
|
|
Max. set pressure (MPa) |
18 MPa |
|
|
Travel hydraulic motor type |
WDM-300 |
|
|
Travel motor brand |
Paiyi |
|
|
Motor displacement |
300 |
|
|
Swing hydraulic motor type |
BM2-315 |
|
|
Displacement |
315 |
|
|
Engine |
Engine brand |
Kubota |
|
Engine model |
Z482 |
|
|
Max. horsepower (ps) |
11.234 |
|
|
Max. power (kW) |
8.2 |
|
|
Max. speed (rpm) |
3000 |
|
|
Displacement (L) |
0.479 |
|
|
Number of cylinders |
2 |
|
|
Cooling method |
Water-cooled |
|
|
Engine oil change quantity (L) |
1.5 |
|
|
Fuel type |
Diesel |
|
|
Fuel grade |
#0 / #-10 |
|
|
Theoretical fuel consumption (L/h) |
0.8-1.2 |
|
|
Dimensions (Machine) |
Transport length (mm) |
2430 |
|
Transport width (mm) |
912 |
|
|
Transport height (mm) |
2201 |
|
|
Ground clearance under counterweight (mm) |
361 |
|
|
Bucket width (mm) |
300 |
|
|
Boom length (mm) |
1477 |
|
|
Arm length (mm) |
800 |
|
|
Dozer blade width (mm) |
912-1212 |
|
|
Tanks |
Fuel tank (L) |
5.5 |
|
Hydraulic oil tank (L) |
12.5 |
|
|
Tracks |
Optional：Rubber (width×pitch×links) |
180×72×37 |
|
Optional：Steel (width×pitch×links) |
180×72×37 |
|
|
Rubber pads (pieces) |
74 |
|
|
Shipping Reference |
Wooden case dimensions (cm) |
320×101×171 |
|
Outer dimensions of case after cab removal (cm) |
320×101×171 |
|
|
Cab wooden case outer dimensions (cm) |
130×105×172 |
|
|
Quantity per 40’ high cube (fully assembled) |
12 |
|
|
Quantity per 40’ high cube (disassembled) |
28 |
|
