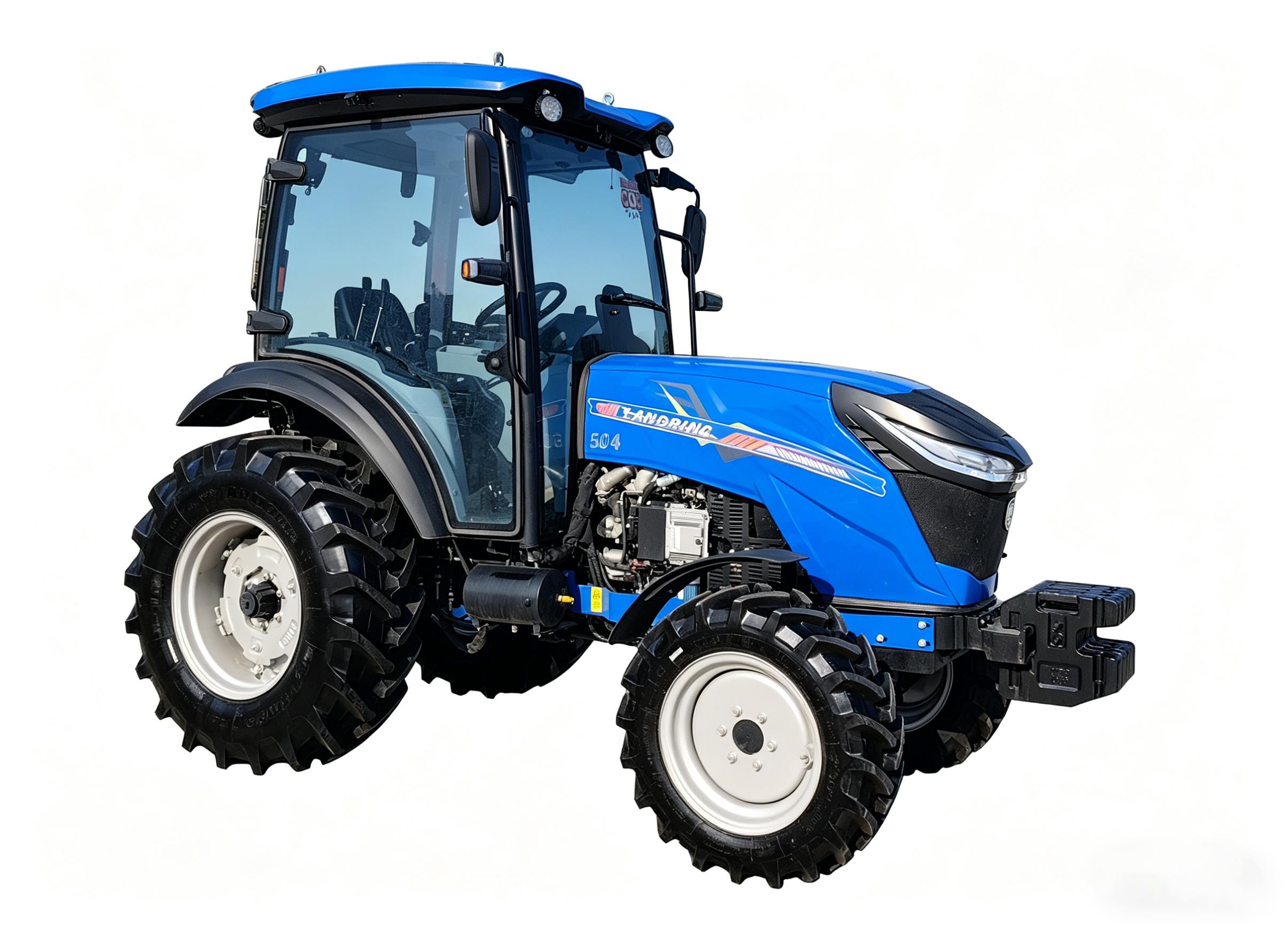

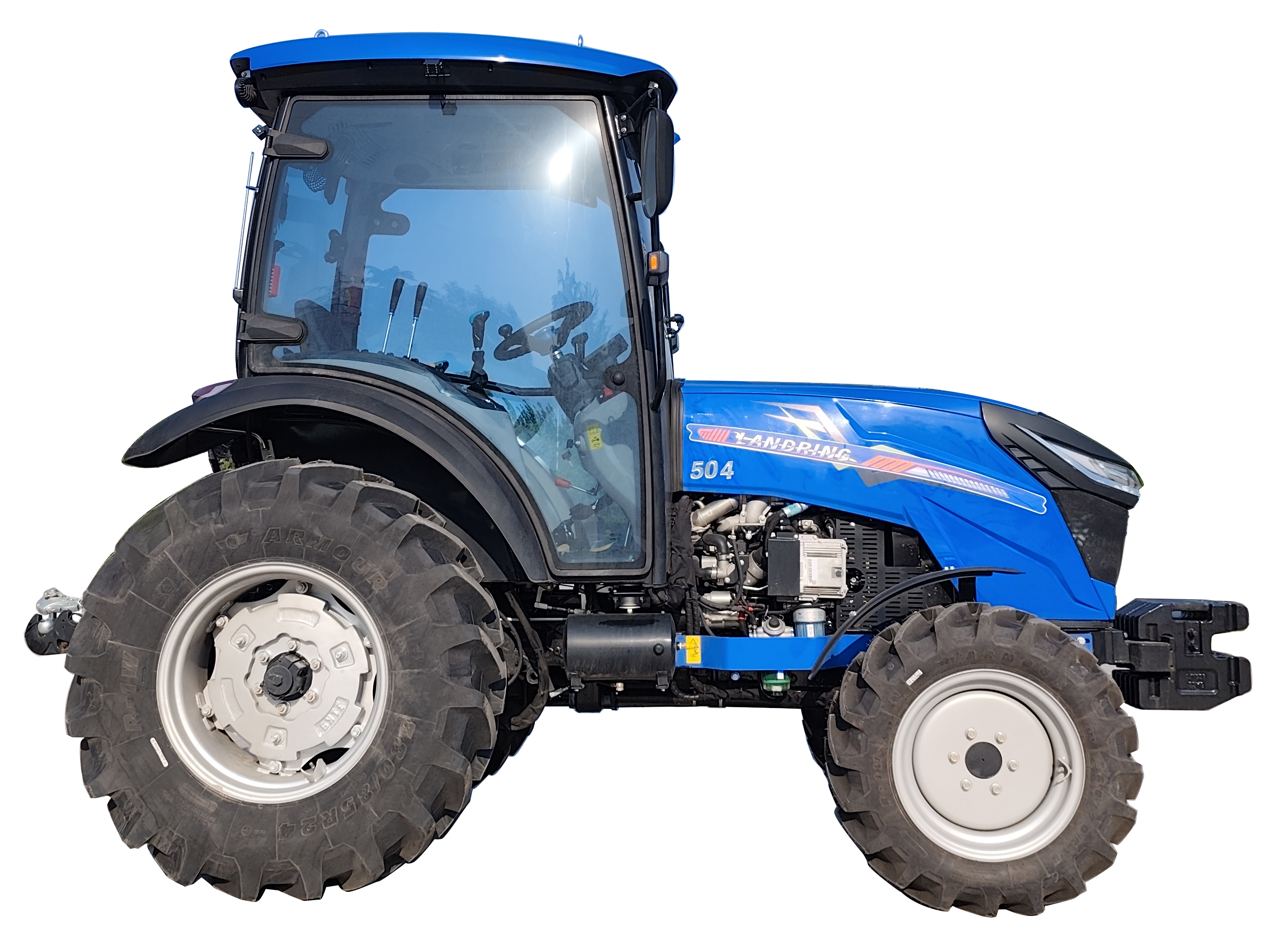

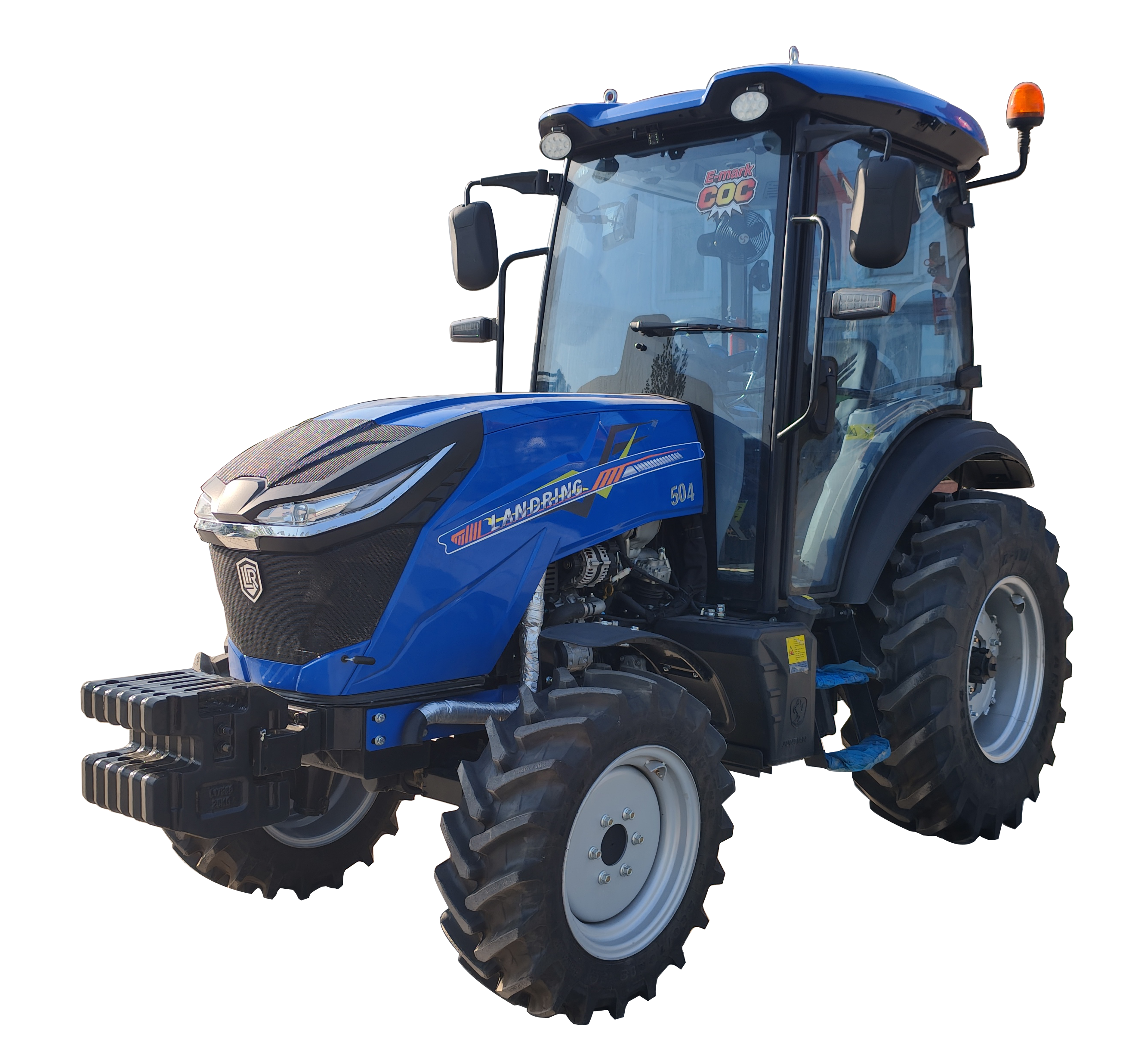

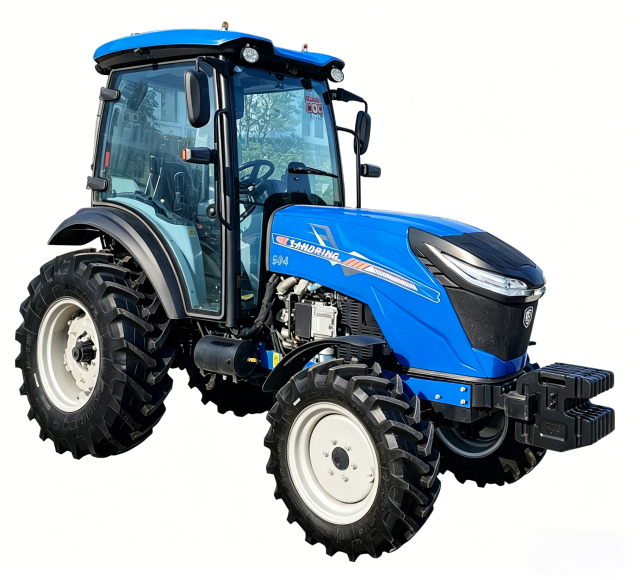

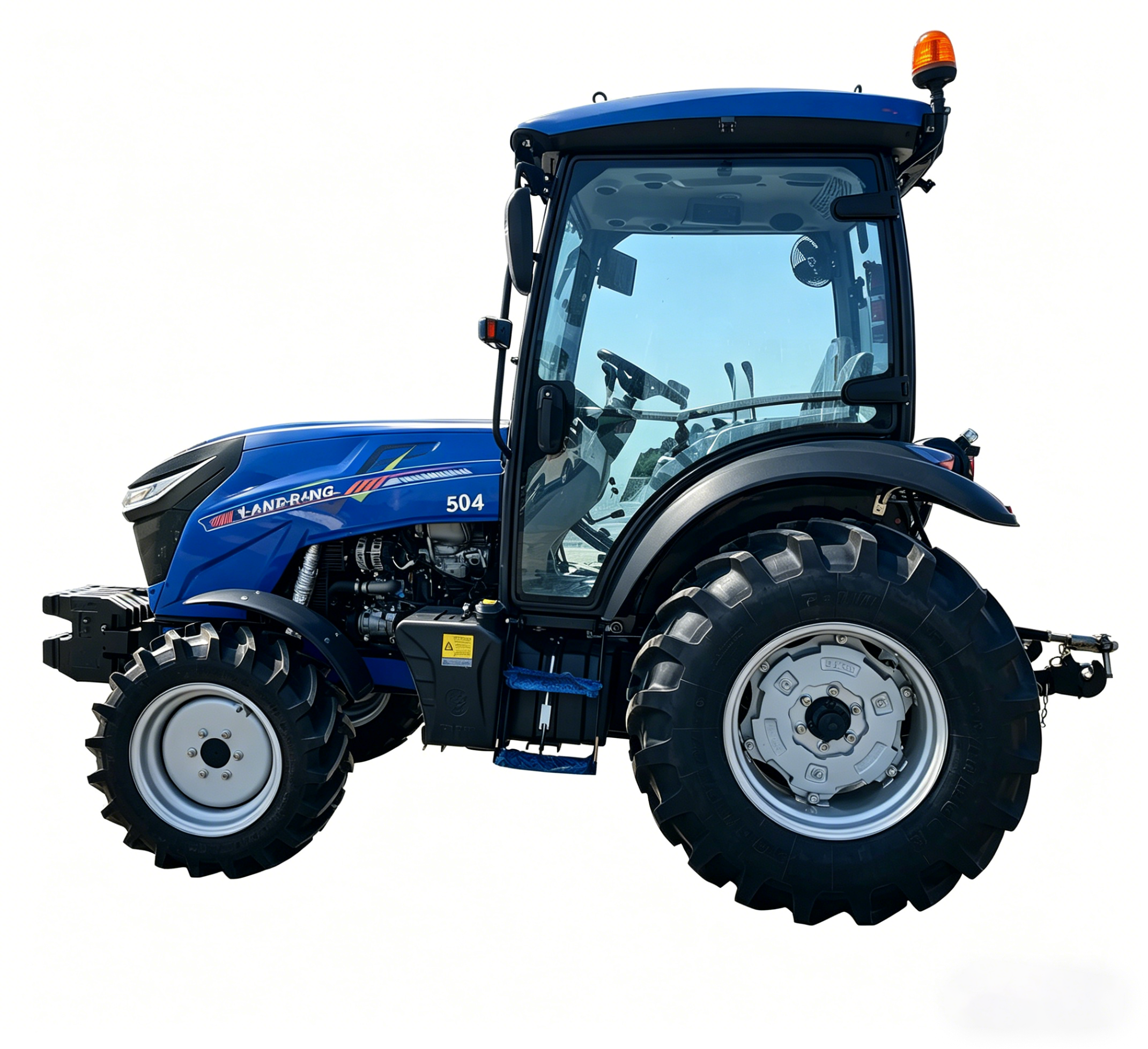

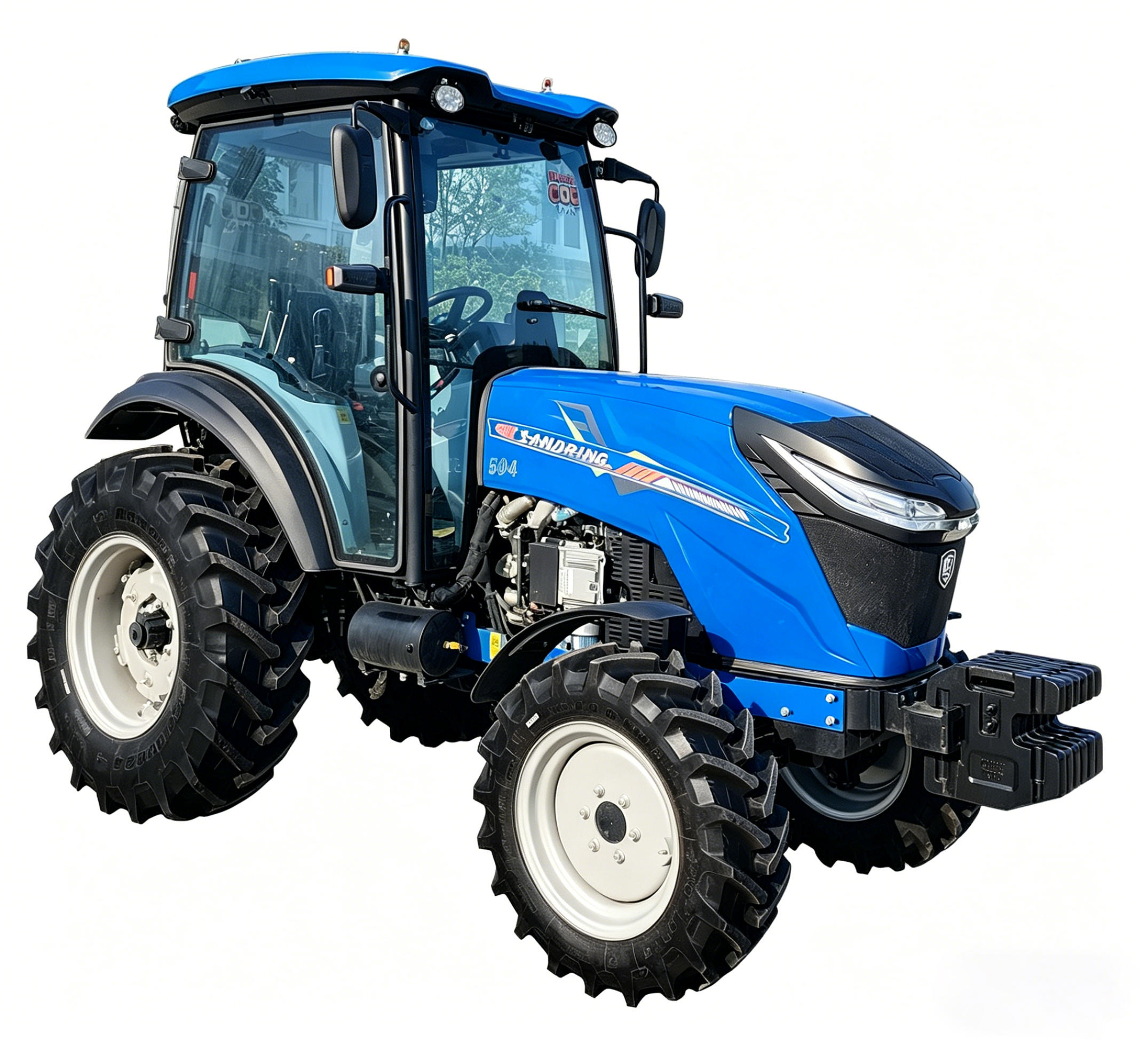

| LRE Series Agricultural Tractor with 18.7-36.8KW | ||||
| MODEL | LRE254 | LRE354 | LRE504 | |
| Power system | ||||
| Engine | LAIDONG / YUNNEI | LAIDONG / YUNNEI | LAIDONG / YUNNEI | |
| Emission standard | Euro V, COC | |||
| Rated power(kW) | 18.7 | 26 | 36.8 | |
| Rated rotating speed (r/min) | 2400 | 2400 | 2400 | |
| Maximum torque(N.m) | 110 | 149 | 190 | |
| Fuel tank capacity (L) | 60 | 60 | 60 | |
| Transmission system | ||||
| Drive type | 4WD | |||
| Clutch type | Dry-friction,dual stage | |||
| Gearbox shift model | 8F+8R Collar Shift+Synchronizer shift | |||
| Speed range | Forward (km/h) | 1.89-27.20 | 1.89-27.20 | 1.99-28.37 |
| Reverse(km/h) | 1.72-24.65 | 1.72-24.65 | 1.79-25.53 | |
| Final transmission | Built-in Type,Single Straight Cylindrical Gear | |||
| Differential lock | Mechanical | |||
| Brake type | Wet,disc type | |||
| Parking brake | Mechanical | |||
| Hydraulic system | ||||
| Hydraulic output flow (L/min) | 36 | 36 | 36 | |
| Number of rear control vavles | Two groups,hydraulic quick coupler | |||
| Lift control mode | Position Control,floating adjustment | |||
| Lifting capacity(KN) | 4.3 | 6.3 | 8.3 | |
| Working device | ||||
| Rear hitch | Hitch category I | |||
| PTO type | 0.5 | |||
| Number of PTO gears | 6 | |||
| Standard tires | ||||
| Front tire | 6.5-16/7.5-16/260/70R16 | |||
| Rear tire | 11.2-24/12.4-24/320/85R24 | |||
| Optional tires | √ | |||
| Machine body | ||||
| Safety Roll Over Protection System | √ | |||
| Cab with AC | √ | |||
| Overall dimensions | ||||
| Length×Width×Height (mm) | 3745×1480×2480(Cab Top of alarm light) 3745×1480×2380(ROPS Top of safety frame) | |||
| Wheel base(mm) | 1960 | 1960 | 1960 | |
| Ground clearance(mm) | 310 | |||
| Weight(kg) | 2100(ROPS) 2300(Cab) | |||
