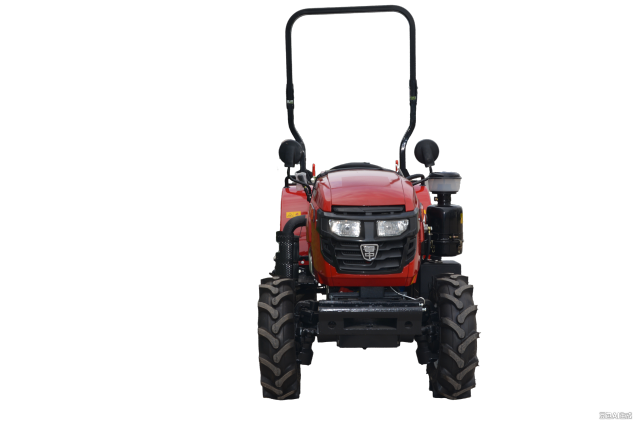

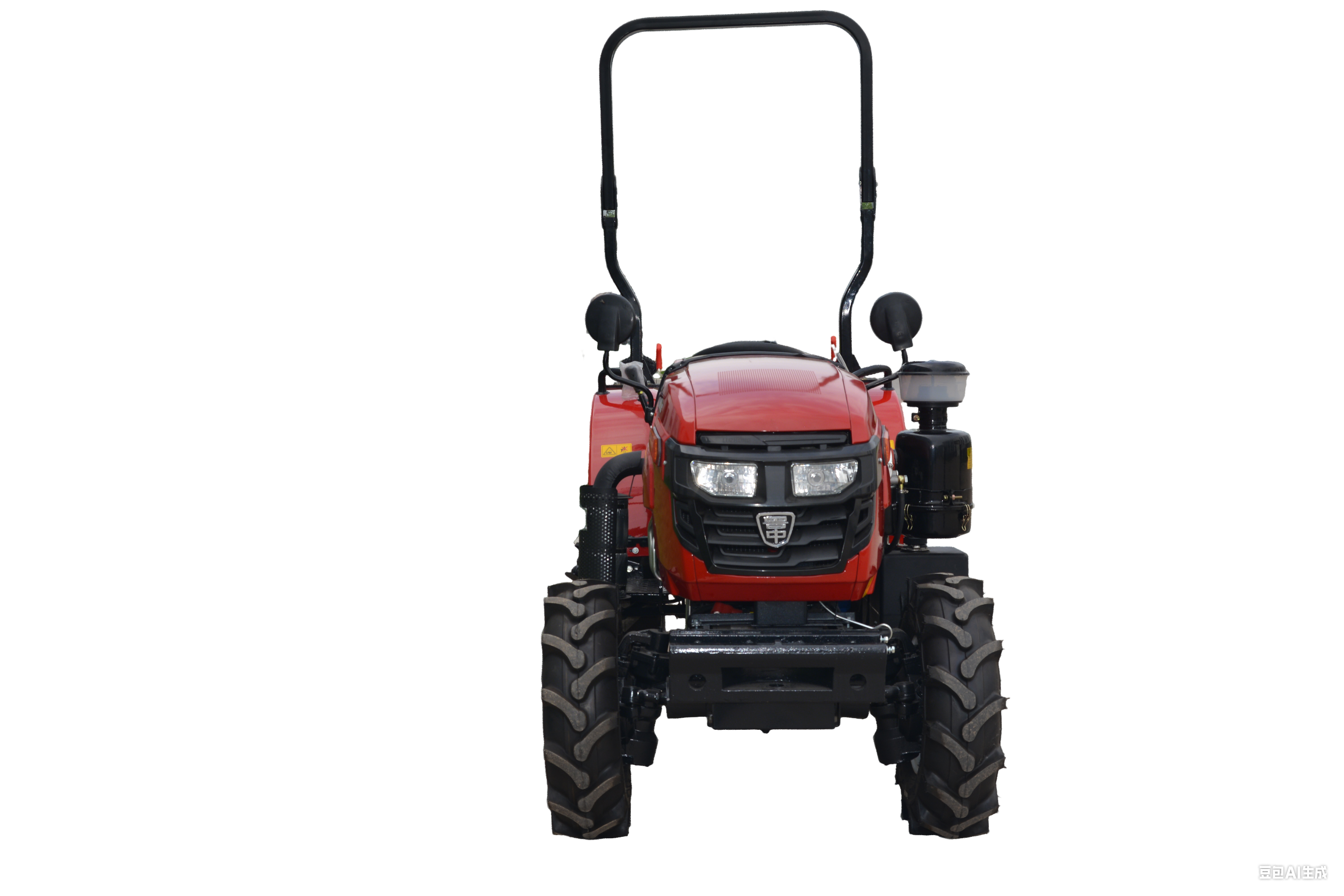

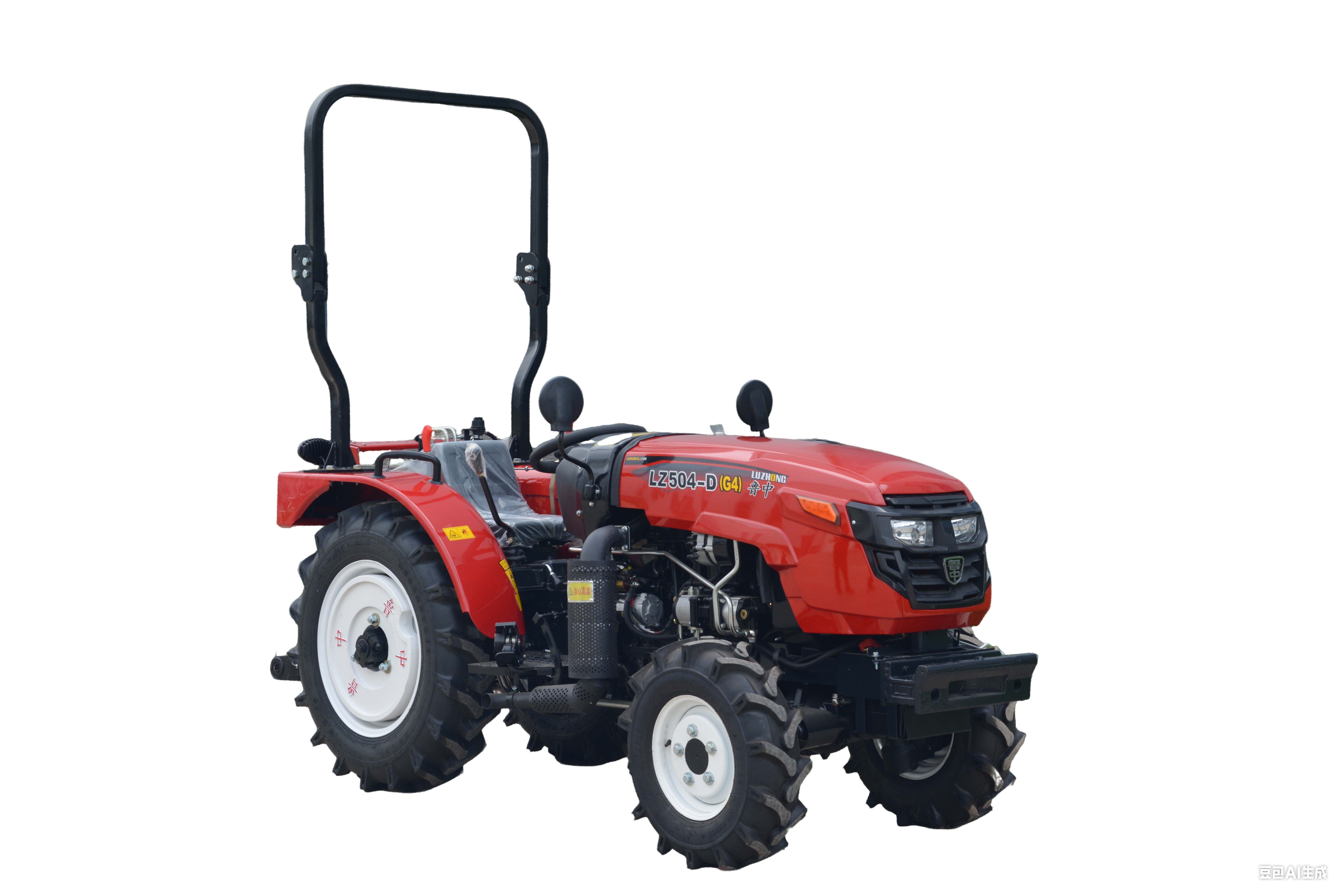

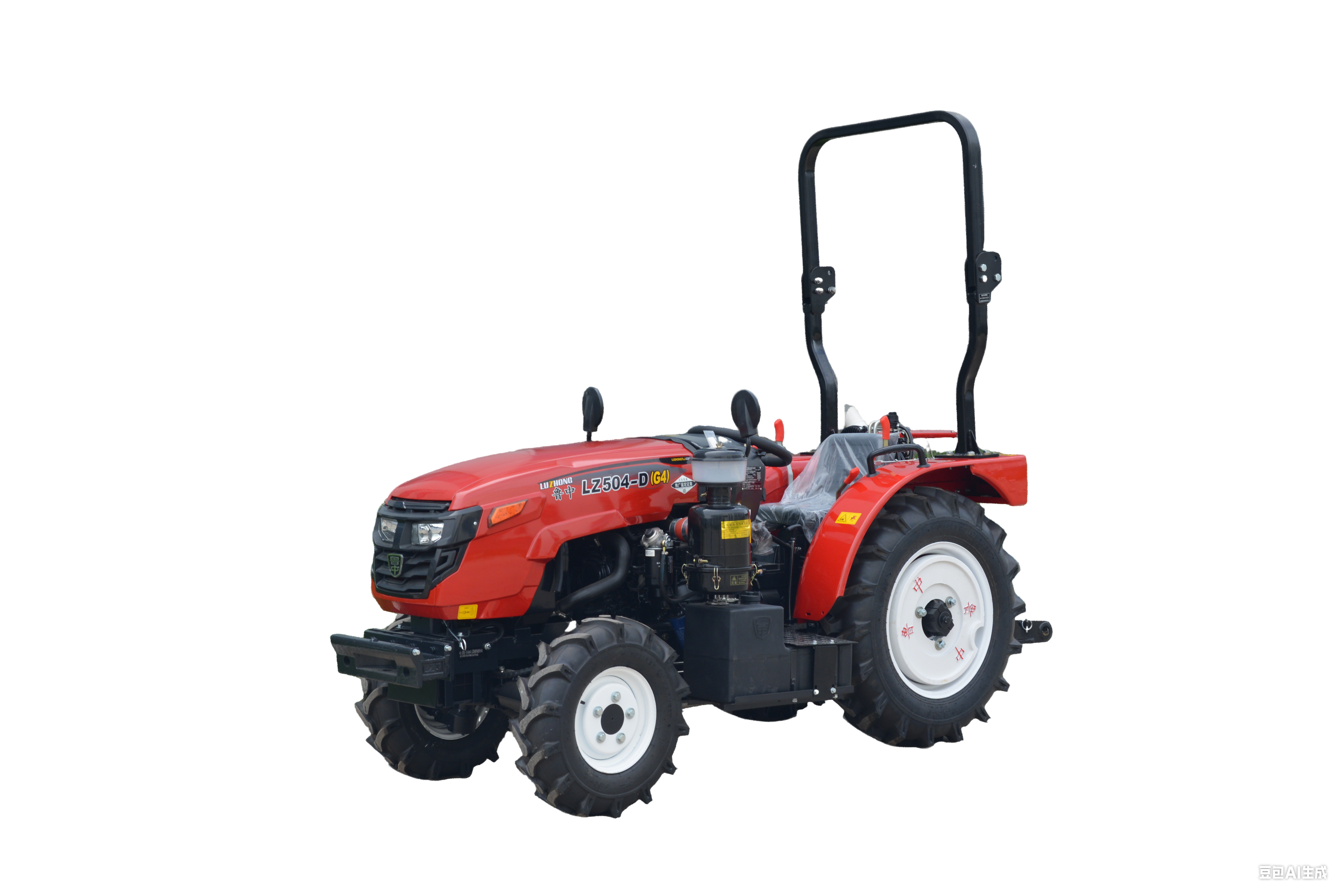

LZ-504A Tractor, Small tractor for general agricultural use |
||
|
Item |
Unit |
Data |
|
Model |
/ |
LZ-504A |
|
Type |
/ |
General agricultural use |
|
Intended Use |
/ |
General agricultural use |
|
Overall Dimensions (L×W×H) |
mm |
3350×1300×2000 |
|
Wheelbase |
mm |
1840 |
|
Wheel Track (Front/Rear) |
mm |
960/900-1020 |
|
Wheel Track Adjustment (Front/Rear) |
/ |
Non-adjustable / Stepless adjustment |
|
Min. Ground Clearance |
mm |
210 (at transfer case bottom) |
|
Min. Operating Weight |
kg |
1700 |
|
Front/Rear Axle Weight |
kg |
760/940 |
|
Max. Ballast Weight (Front/Rear) |
kg |
42/56 |
|
Number of Gears (Forward/Reverse) |
/ |
8F+2R |
|
Engine-Clutch Connection |
/ |
Direct |
|
Starting Method |
/ |
Electric start |
|
PTO Power |
kW |
31.28 |
|
Max. Drawbar Pull |
kN |
5.1 |
|
Cab or ROPS Type |
/ |
Two-post fixed ROPS |
|
Engine Brand or Trademark |
/ |
LD |
|
Engine Type |
/ |
Inline, water-cooled, 4-stroke |
|
Engine Manufacturer Name |
/ |
Shandong Huayuan Laidong Internal Combustion Engine Co., Ltd. |
|
Engine Aspiration |
/ |
Naturally aspirated |
|
Number of Cylinders |
Cylinder |
4 |
|
Cylinder Bore × Stroke |
mm |
100×105 |
|
Engine Displacement |
L |
3.298 |
|
Engine Compression Ratio |
/ |
18:01 |
|
Engine Rated Power |
kW |
36.8 |
|
Engine Rated Speed |
r/min |
2300 |
|
Engine Cooling System Type |
/ |
Water-cooled |
|
Fuel Tank Capacity |
L |
35 |
|
Steering System Type |
/ |
Front-wheel hydraulic steering |
|
Steering Gear Type |
/ |
Hydraulic steering gear |
|
Brake System Type |
/ |
Drum brake |
|
Transmission Clutch Type |
/ |
Dry, single plate, constant mesh |
|
Transmission Gearbox Type |
/ |
2-shaft (4+1)×2, compound type [(4+4)×2 or (4+1)×2×2 optional] |
|
Transmission Shift Method |
/ |
Sliding gear shift (meshing sleeve shift) |
|
Chassis Frame Type |
/ |
Semi-integral (half-frame) |
|
Tire Model (Front/Rear) |
/ |
7.00-12 (6.00-16, 6.00-12, 5.00-12 optional) / 13.6-16 (11.2-24, 9.5-24, 9.5-20, 9.5-16, 7.50-20 optional) |
|
Implement Hitch Type |
/ |
Rear-mounted, three-point linkage |
|
Implement Hitch Category |
/ |
Category 1 |
|
Hydraulic Outlet Type |
/ |
Simple hydraulic outlet, 1 quick coupler |
|
PTO Type |
/ |
Rear-mounted, semi-independent Type 1 |
|
PTO Spline Count |
/ |
8 |
|
PTO Spline Major Diameter |
mm |
38 |
|
PTO Speed |
r/min |
540/760 (540/1000 or 720 optional) |
|
Max. Lifting Force at 610 mm on Hitch Frame |
kN |
8.27 |
