| Model | Technical specifications\Descriptions | Package Dimension(mm) | Volume | Pcs / Container | Certificates | |||||
| Package size | Pcs/m³ | 20'FT | 40'FT | 40'HQ | ||||||
| L | W | H | QTY | QTY | QTY | |||||

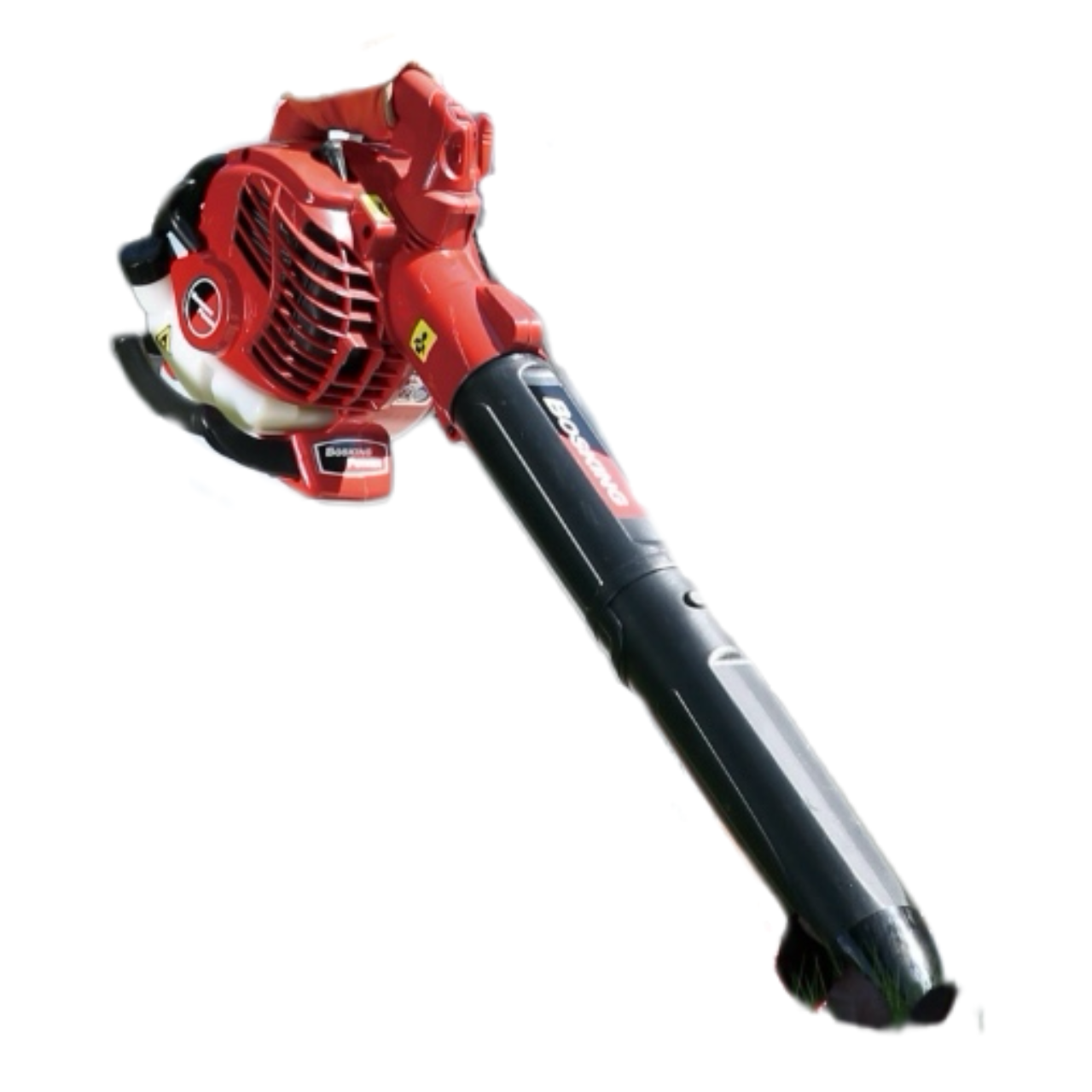

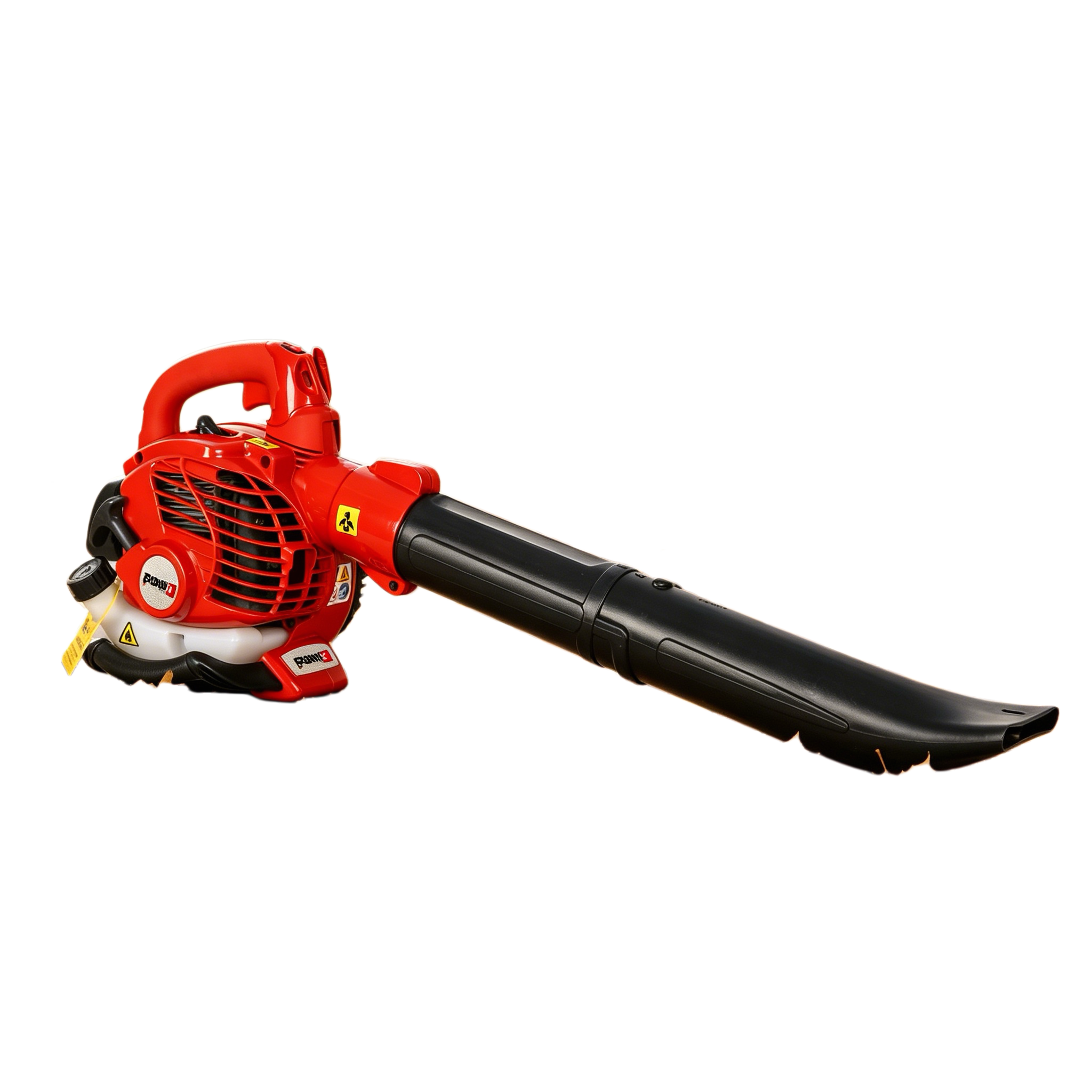

| EB260A | Engine Model | 1E34F | 460 | 290 | 390 | 0.05 | 538 | 1038 | 1307 | CE,EMC |
| Engine Model Type | 2-Stroke,Air Cooled | |||||||||
| Discharging Capacity(ml) | 25.4 | |||||||||
| Power(kw/r/min) | 0.75/7500 | |||||||||
| Idle Speed (rpm) | 2800±200 | |||||||||
| Noise(dBA) | ≤108 | |||||||||
| Spark plug | Torch L6 | |||||||||
| Fuel mix ratio | 25:1~30:1 | |||||||||
| Fuel tank capacity(L) | 0.45 | |||||||||
| Air velocity(m/s) | ≥60(60-90) | |||||||||
| Air volume(m³/s) | ≥0.2 | |||||||||
| Guaranteed sound power level | 108dB(A) | |||||||||
| Net Weight(kg) | 4.5 | |||||||||
| Gross Weight(kg) | 5.7 | |||||||||
