No. |
Item name |
Parameter |
|
|
1 |
Product name |

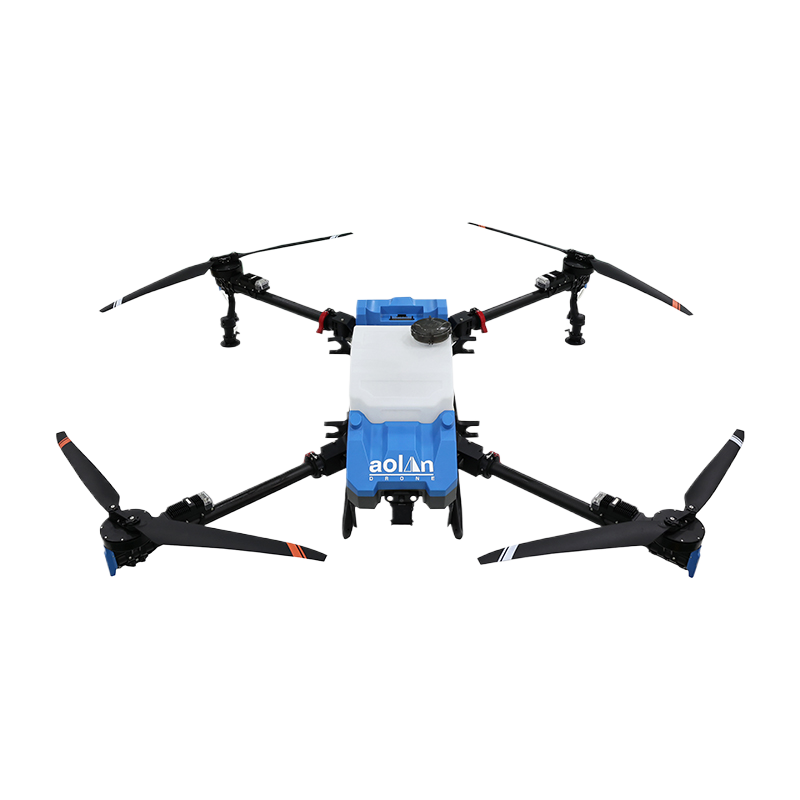

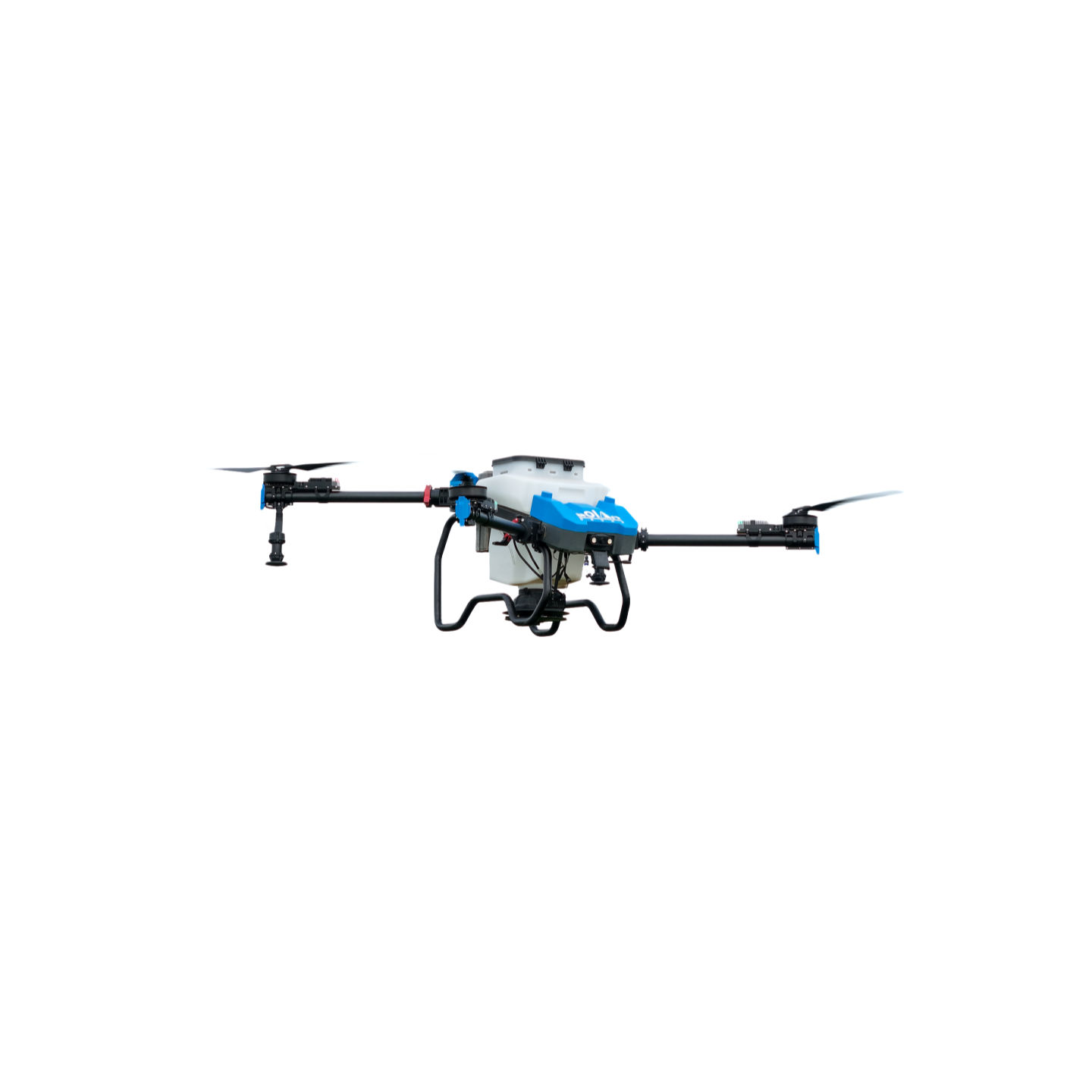

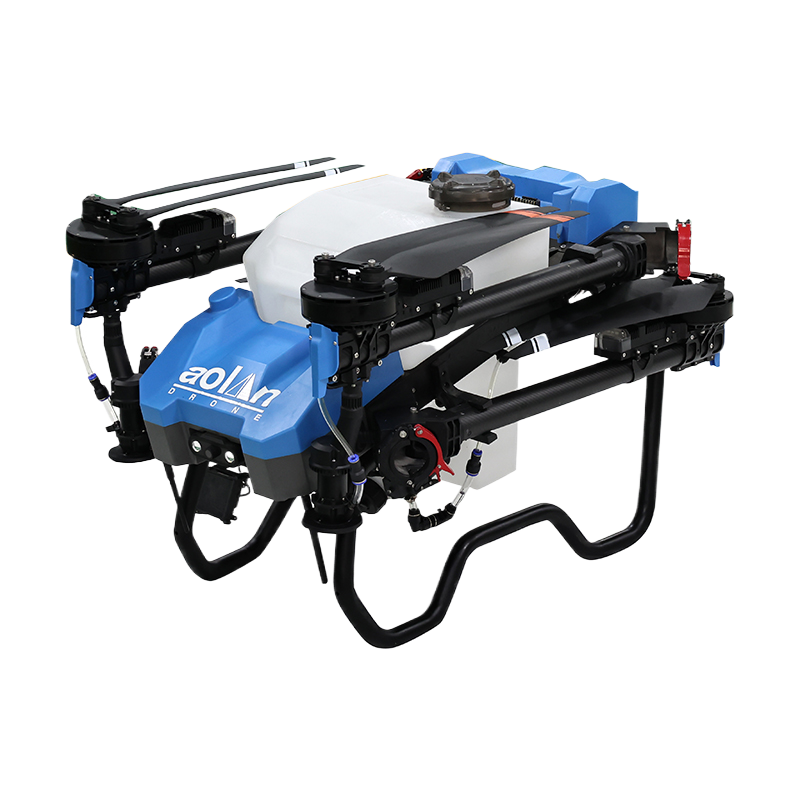

Agricultural drone |
|
|
2 |
Model |
AL4-20 |
|
|
3 |
Flight Control System |
JIYI K++ V2 |
|
|
4 |
Net weight t (without battery) |
24 kg |
|
|
5 |
Max take off weight |
55 kg |
|
|
6 |
Work Pressure |
0.9 MPa |
|
|
7 |
Spread size |
2400*2460*630 mm (±10 mm) |
|
|
8 |
Propeller |
Material |
Nylon , carbon fiber |
|
Quantity |
4 |
||
|
Diameter |
Φ 40 *132 inch |
||
|
9 |
Liquid tank |
Material |
Plastic |
|
Rated Capacity |
20L |
||
|
10 |
Nozzle |
Type |
Centrifugal nozzle |
|
Quantity |
2 |
||
|
11 |
Boom length |
1600 mm (The length for between the farthest two nozzles along spray width) |
|
|
12 |
Pump |
Type |
Diaphragm pumps |
|
Flow |
5L/min |
||
|
13 |
Motor |
KV value |
80 r/(min.V) |
|
Service life |
≥2000 hours |
||
|
14 |
Battery |
Rated Voltage |
51.8 V |
|
Capacity |
14S 22000mAh |
||
|
15 |
Flight data |
Payload |
20L |
|
Flight height |
1.5m-2.5m |
||
|
Flight speed |
5m-8m |
||
|
Spray width |
4m-8m |
||
|
Spraying dosage |
0.8L-2.1L |
||
|
Flights /hectare |
1.4 hectares |
||
|
Day /hectare |
50 hectares |
||
